Sale!

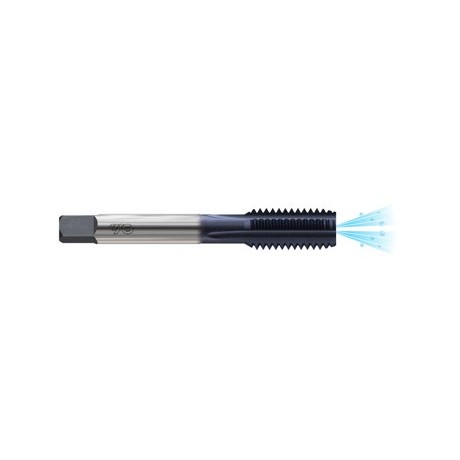

YG1-TR365A – M8 x 1.25 D5 – Hss-Pm Straight Flute Axial Coolant Hole Tialn Coated Tap

Original price was: $45.82.Current price is: $34.40.

YG Tap TiNi

UPC: N/A SKU: YG1-TR365A Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR365A
Description	HSS-PM STRAIGHT FLUTE AXIAL COOLANT HOLE TIALN COATED TAP
Size	M8 x 1.25 D5
Available Qty.	Call for availability

Specifications

Serial #	86
Series	TR-A
Long Description	M8x1.25," 2.720 OAL HSS-PM 4 Flute TiALN D5 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	M8x1.25
# of Flutes	4
Diameter (inch)	0.315
Diameter (metric)	8
Pitch	1.25
Thread Series	M
Pitch Limit	D5
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	2.720
OAL (metric)	69.088
Thd. Lgth. (inch)	0.669
Thd. Lgth. (metric)	16.99
Sqr. Lgth. (inch)	0.38
Sqr. Lgth. (metric)	9.65
Shk. Dia. (inch)	0.318
Shk. Dia. (metric)	8.08
Sqr. Size (inch)	0.238
Sqr. Size (metric)	6.05
Neck Dia (inch)	0.246
Neck Dia (metric)	6.25
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.2702
Drill Size (mm)	6.863
Connection (in)	0.318 x 0.238
Connection (mm)	8.08 x 6.05
Length/ Diameter	2.0xD
Useable Length (in)	1.126
Useable Length (mm)	28.6
Coolant Thru 0 With and X without	Yes
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
