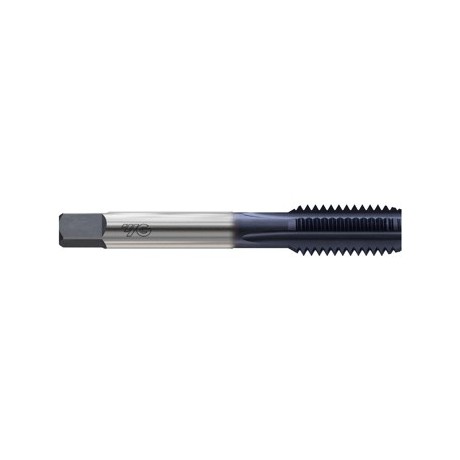

YG1-TR545 – 7/16-20 H5 – Hss-Pm Straight Flute Without Coolant Hole Tialn Coated Tap

Original price was: $71.17.Current price is: $53.40.

YG Tap TiNi

UPC: N/A SKU: YG1-TR545 Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR545
Description	HSS-PM STRAIGHT FLUTE WITHOUT COOLANT HOLE TIALN COATED TAP
Size	7/16-20 H5
Available Qty.	Call for availability

Specifications

Serial #	25
Series	TR
Long Description	7/16-20," 3.157 OAL HSS-PM 4 Flute TiALN H5 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	7/16-20
# of Flutes	4
Diameter (inch)	0.4375
Diameter (metric)	11.112
Pitch	20
Thread Series	UNF
Pitch Limit	H5
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	3.157
OAL (metric)	80.188
Thd. Lgth. (inch)	0.866
Thd. Lgth. (metric)	22
Sqr. Lgth. (inch)	0.41
Sqr. Lgth. (metric)	10.41
Shk. Dia. (inch)	0.323
Shk. Dia. (metric)	8.2
Sqr. Size (inch)	0.242
Sqr. Size (metric)	6.15
Neck Dia (inch)	0.311
Neck Dia (metric)	7.9
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.392
Drill Size (mm)	9.958
Connection (in)	0.323 x 0.242
Connection (mm)	8.2 x 6.15
Length/ Diameter	2.0xD
Useable Length (in)	1.437
Useable Length (mm)	36.5
Coolant Thru 0 With and X without	No
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
