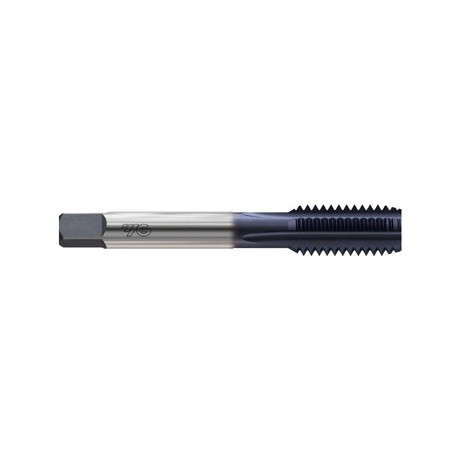

YG1-TR625 – 9/16-18 H5 – Hss-Pm Straight Flute Without Coolant Hole Tialn Coated Tap

Original price was: $145.00.Current price is: $108.75.

YG Tap TiNi

UPC: N/A SKU: YG1-TR625 Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR625
Description	HSS-PM STRAIGHT FLUTE WITHOUT COOLANT HOLE TIALN COATED TAP
Size	9/16-18 H5
Available Qty.	Call for availability

Specifications

Serial #	33
Series	TR
Long Description	9/16-18," 3.594 OAL HSS-PM 4 Flute TiALN H5 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	9/16-18
# of Flutes	4
Diameter (inch)	0.5625
Diameter (metric)	14.2875
Pitch	18
Thread Series	UNF
Pitch Limit	H5
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	3.594
OAL (metric)	91.288
Thd. Lgth. (inch)	0.984
Thd. Lgth. (metric)	24.99
Sqr. Lgth. (inch)	0.5
Sqr. Lgth. (metric)	12.7
Shk. Dia. (inch)	0.429
Shk. Dia. (metric)	10.9
Sqr. Size (inch)	0.322
Sqr. Size (metric)	8.18
Neck Dia (inch)	0.417
Neck Dia (metric)	10.59
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.512
Drill Size (mm)	13.004
Connection (in)	0.429 x 0.322
Connection (mm)	10.9 x 8.18
Length/ Diameter	2.0xD
Useable Length (in)	1.657
Useable Length (mm)	42.09
Coolant Thru 0 With and X without	No
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
