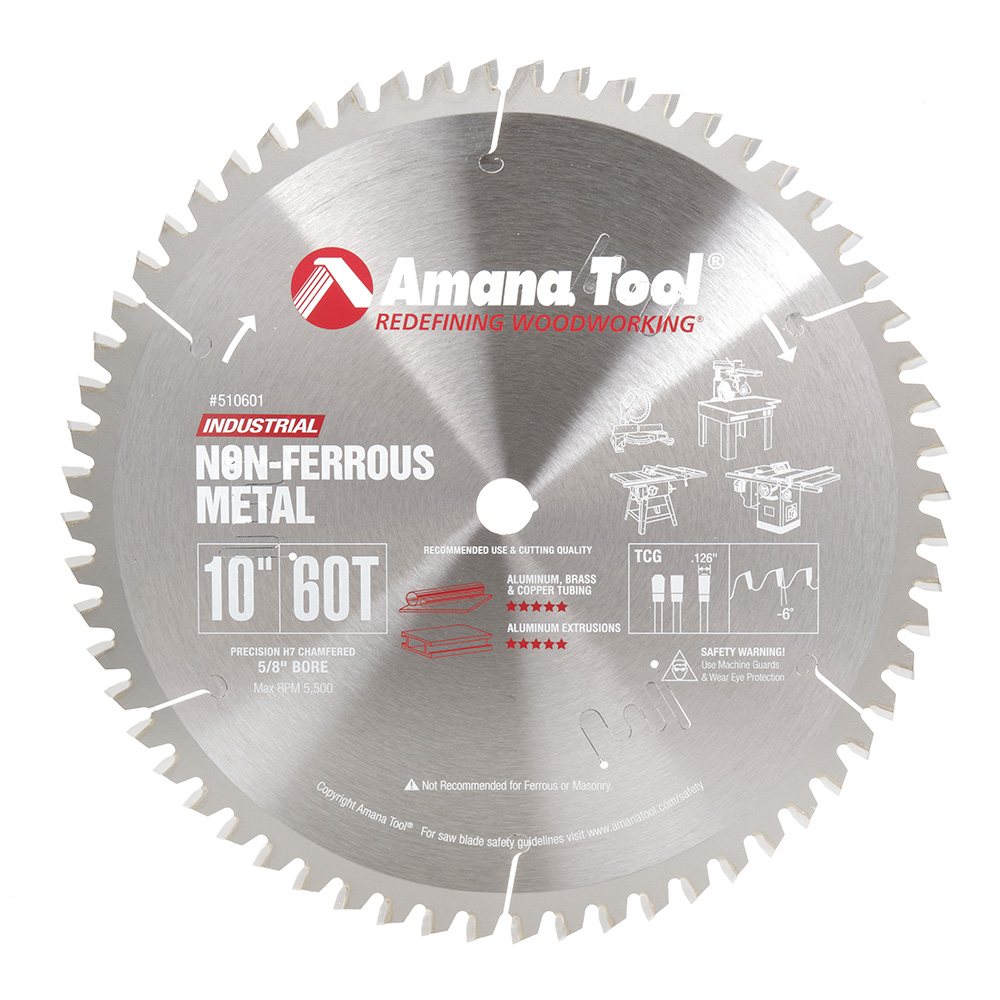

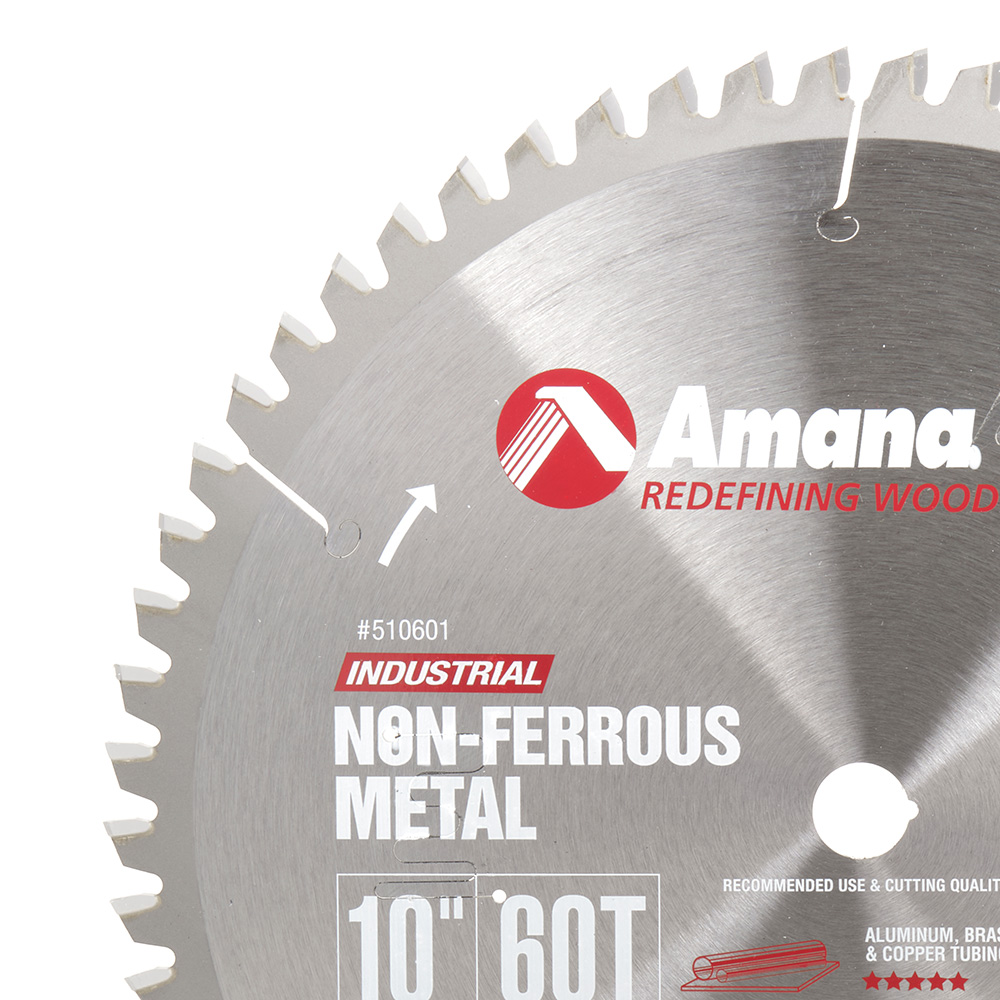

510601 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 60T TCG, -6 Deg, 5/8 Bore

Amana 510601 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 60T TCG, -6 Deg, 5/8 Bore

Name: Amana 510601 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 60T TCG, -6 Deg, 5/8 Bore
SKU: Amana 510601
Availability: InStock

Original price was: $179.40.Current price is: $134.55.

10″/60T NON FERROUS TCG GRIND

UPC: 738685516010 SKU: Amana 510601 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

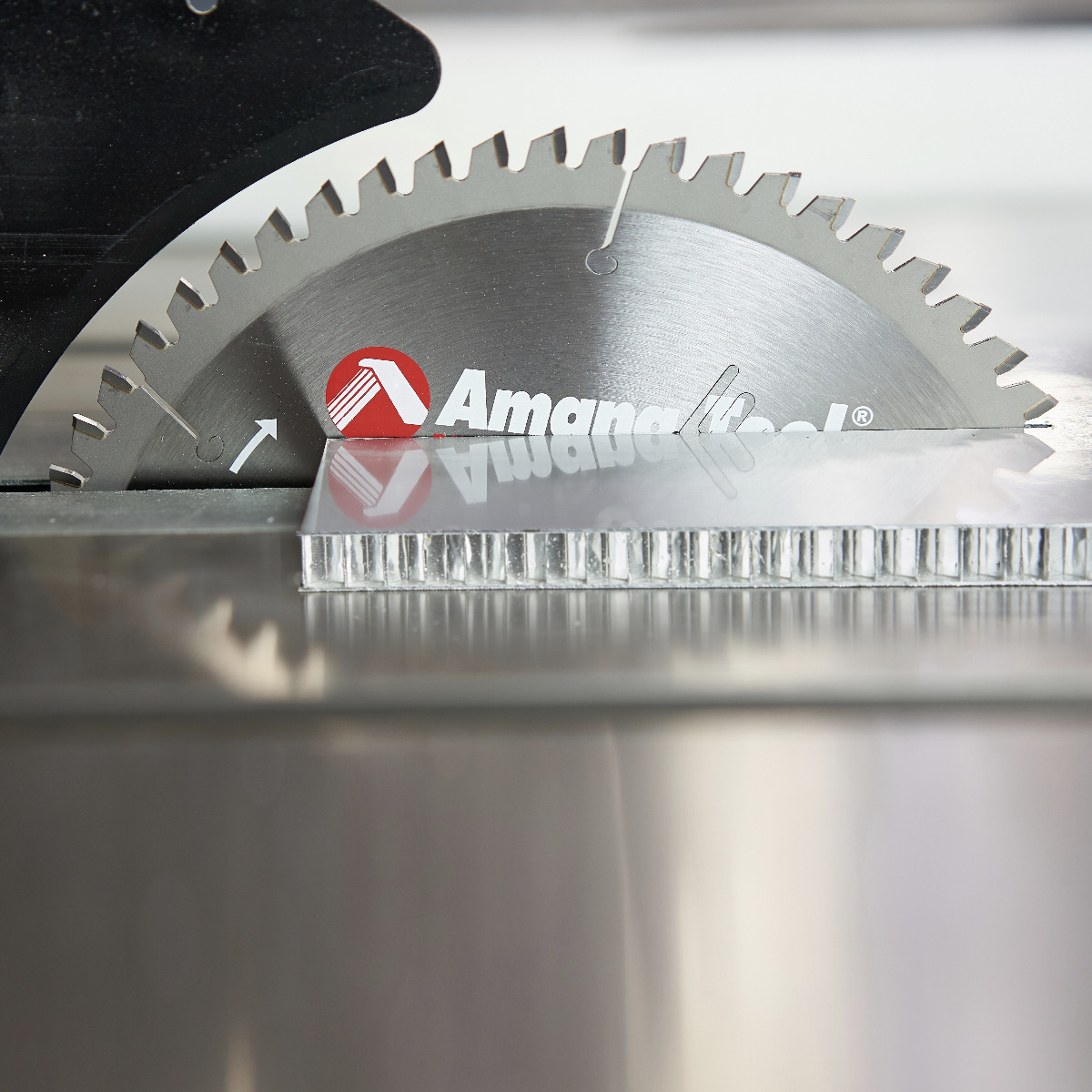

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	10 (250mm)
Teeth	60
(d) Bore	5/8
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.126 (3.2mm)
Plate (C)	.102 (2.6mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	510601-30
12	72	TCG	-6°6	.126	.102	1 (25.40mm)	–	512721
12	72	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	512721-30
14	84	TCG	-6°6	.126	.102	1 (25.40mm)	–	514841
16	96	TCG	-6°6	.150	.126	1 (25.40mm)	–	516961
18	108	TCG	-6°6	.157	.134	1 (25.40mm)	–	518108

Weight	2.48 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
