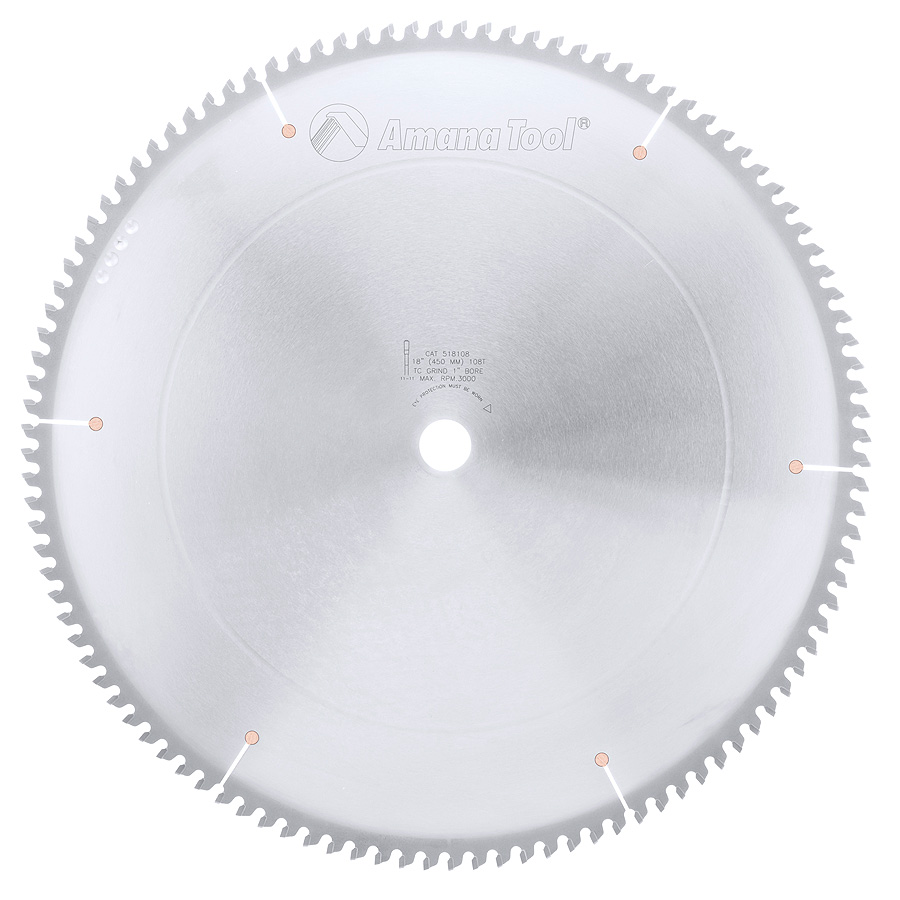

518108 Carbide Tipped Aluminum and Non-Ferrous Metals 18 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

Amana 518108 Carbide Tipped Aluminum and Non-Ferrous Metals 18 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

Name: Amana 518108 Carbide Tipped Aluminum and Non-Ferrous Metals 18 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore
SKU: Amana 518108
Availability: InStock

Original price was: $345.95.Current price is: $259.47.

18″/108T NON FERROUS T.C GRIND

UPC: 738685581087 SKU: Amana 518108 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

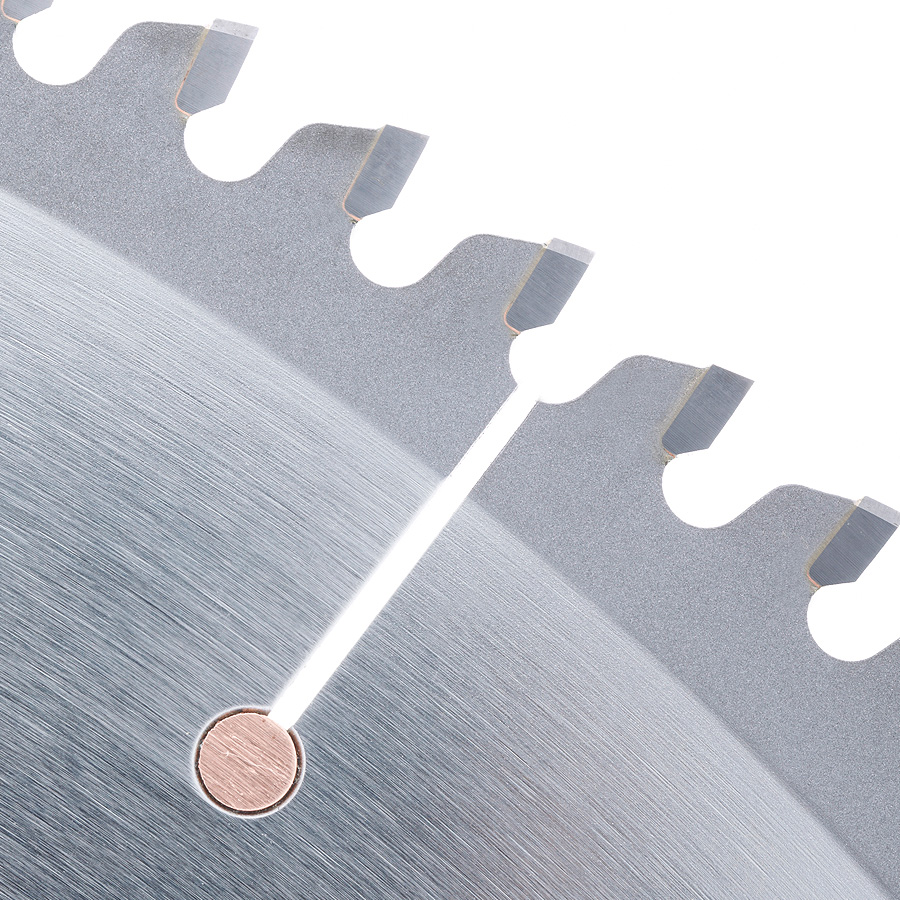

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	18 (450mm)
Teeth	108
(d) Bore	1
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.157 (4.0mm)
Plate (C)	.134 (3.4mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	510601
10	60	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	510601-30
12	72	TCG	-6°6	.126	.102	1 (25.40mm)	–	512721
12	72	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	512721-30
14	84	TCG	-6°6	.126	.102	1 (25.40mm)	–	514841
16	96	TCG	-6°6	.150	.126	1 (25.40mm)	–	516961

Weight	10.86 lbs
