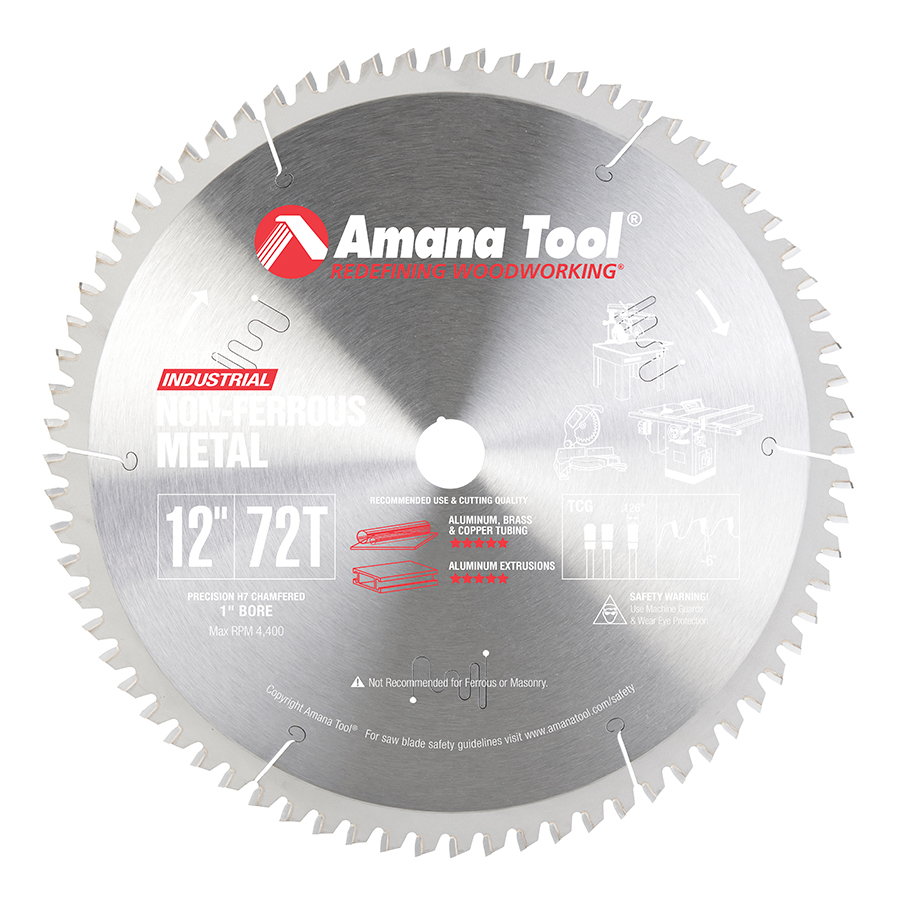

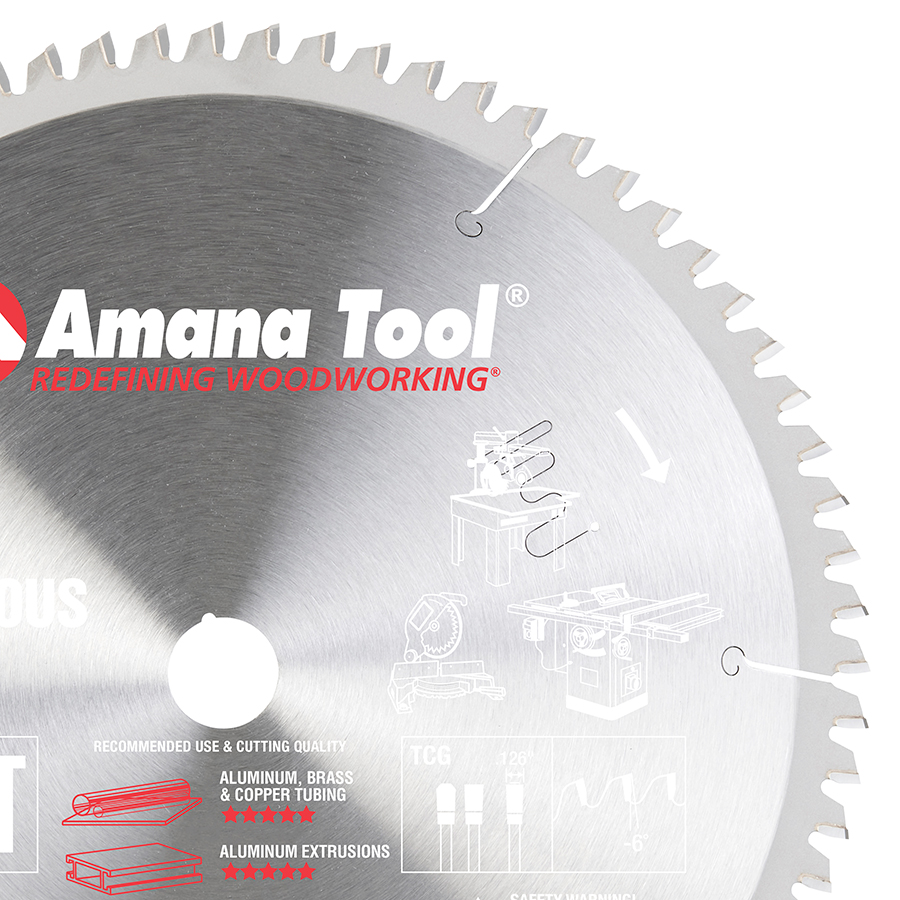

512721 Carbide Tipped Aluminum and Non-Ferrous Metals 12 Inch Dia x 72T TCG, -6 Deg, 1 Inch Bore

Amana 512721 Carbide Tipped Aluminum and Non-Ferrous Metals 12 Inch Dia x 72T TCG, -6 Deg, 1 Inch Bore

Name: Amana 512721 Carbide Tipped Aluminum and Non-Ferrous Metals 12 Inch Dia x 72T TCG, -6 Deg, 1 Inch Bore
SKU: Amana 512721
Availability: InStock

Original price was: $183.85.Current price is: $137.89.

12″/72T NON FERROUS TCG GRIND

UPC: 738685527214 SKU: Amana 512721 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	12 (300mm)
Teeth	72
(d) Bore	1
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.126 (3.2mm)
Plate (C)	.102 (2.6mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	510601
10	60	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	510601-30
12	72	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	512721-30
14	84	TCG	-6°6	.126	.102	1 (25.40mm)	–	514841
16	96	TCG	-6°6	.150	.126	1 (25.40mm)	–	516961
18	108	TCG	-6°6	.157	.134	1 (25.40mm)	–	518108

Weight	3.46 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
