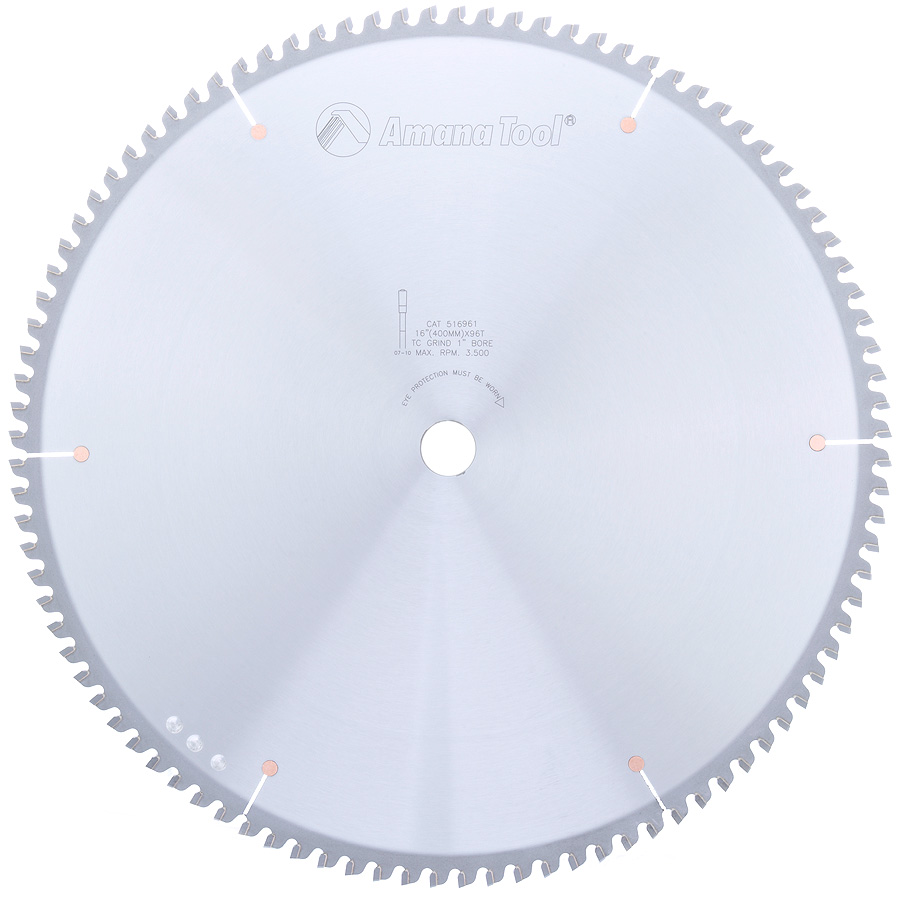

516961 Carbide Tipped Aluminum and Non-Ferrous Metals 16 Inch Dia x 96T TCG, -6 Deg, 1 Inch Bore

Amana 516961 Carbide Tipped Aluminum and Non-Ferrous Metals 16 Inch Dia x 96T TCG, -6 Deg, 1 Inch Bore

Name: Amana 516961 Carbide Tipped Aluminum and Non-Ferrous Metals 16 Inch Dia x 96T TCG, -6 Deg, 1 Inch Bore
SKU: Amana 516961
Availability: InStock

Original price was: $365.00.Current price is: $273.75.

16″/96T NON FERROUS TCG GRIND

UPC: 738685569610 SKU: Amana 516961 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

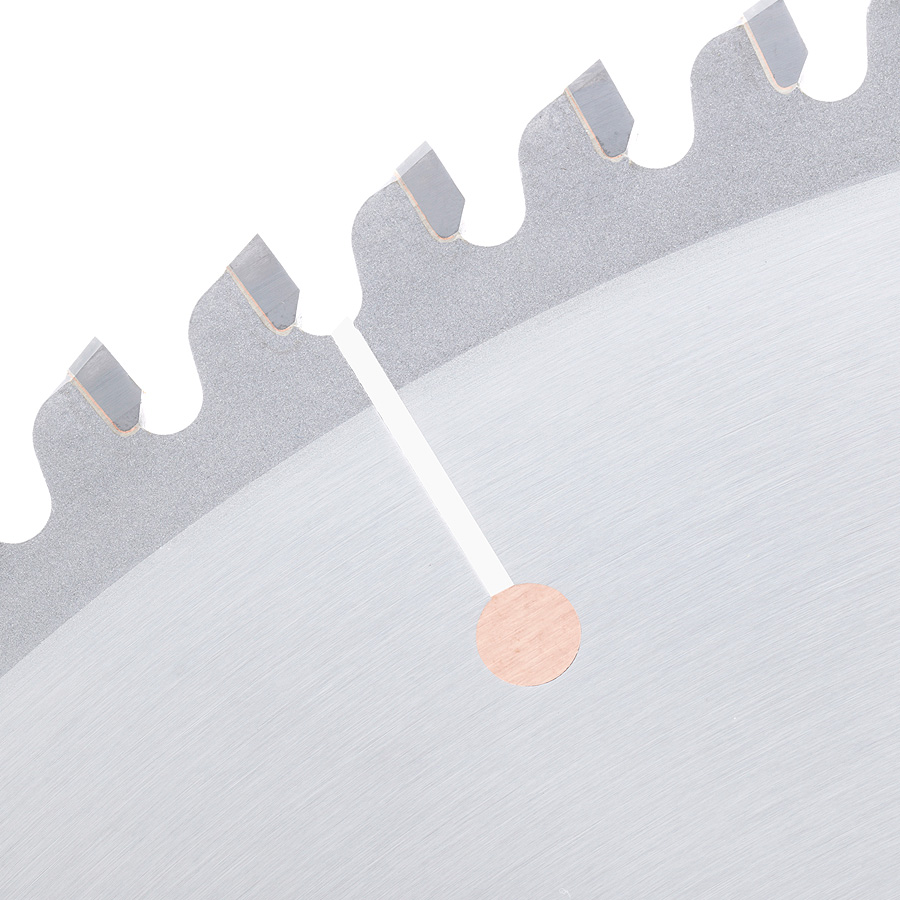

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	16 (400mm)
Teeth	96
(d) Bore	1
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.150 (3.8mm)
Plate (C)	.126 (3.2mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	510601
10	60	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	510601-30
12	72	TCG	-6°6	.126	.102	1 (25.40mm)	–	512721
12	72	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	512721-30
14	84	TCG	-6°6	.126	.102	1 (25.40mm)	–	514841
18	108	TCG	-6°6	.157	.134	1 (25.40mm)	–	518108

Weight	7.74 lbs
