| EDP No. | ST562 |
|---|---|
| Description | HSS-EX ANSI STI 40 DEGREE HELIX SPIRAL FLUTE TAP HARDSLICK COATED, BOTTOMING TAP / 1.5p-2.0p THREAD CHAMFER |
| Size | 1/2-13UNC 2B- 96.77L |
| Available Qty. | Call for availability |

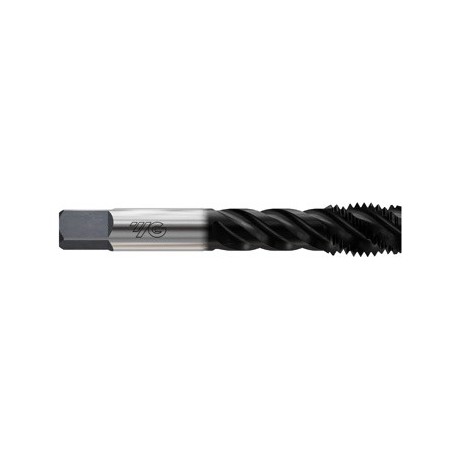

YG1-ST562 – 1/2-13UNC 2B- 96.77L – Hss-Ex Ansi Sti 40 Degree Helix Spiral Flute Tap Hardslick Coated, Bottoming Tap / 1.5P-2.0P Thread Chamfer
$51.29 Original price was: $51.29.$35.10Current price is: $35.10.
Blue Ring Tap
| Serial # | 143 |
|---|---|
| Series | ST |
| Long Description | 1/2-13," 3.811,OAL HSS-E 3 Flute Hardslick 2B Bottoming Spiral Flute YG-1 STI Tap |
| Tap Type | Spiral Flute |
| Size & Pitch | 1/2-13 |
| # of Flutes | 3 |
| Diameter (inch) | 0.5 |
| Diameter (metric) | 12.7 |
| Pitch | 13 |
| Thread Series | UNC |
| Pitch Limit | 2B |
| Website Length | 96.77 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Hardslick |
| Material | GS |
| Blank Standard | 322 |
| Helix Angle | 40 |
| Overall Length (inch) | 3.811 |
| OAL (metric) | 96.799 |
| Thd. Lgth. (inch) | 0.748 |
| Thd. Lgth. (metric) | 19 |
| Sqr. Lgth. (inch) | 0.56 |
| Sqr. Lgth. (metric) | 14.224 |
| Shk. Dia. (inch) | 0.48 |
| Shk. Dia. (metric) | 12.192 |
| Sqr. Size (inch) | 0.36 |
| Sqr. Size (metric) | 9.14 |
| Neck Dia (inch) | 0.354 |
| Neck Dia (metric) | 8.992 |
| Neck Length (Inch) | 2.205 |
| Neck Length (Metric) | 56.007 |
| System of Measurement | Inch |
| Shank Type | Square |
| Drill Size (inch) | 0.525 |
| Drill Size (mm) | 13.34 |
| Connection (in) | 0.48 x 0.36 |
| Connection (mm) | 12.192 x 9.14 |
| Length/ Diameter | 2.5 x D |
| Useable Length (in) | 1.81 |
| Useable Length (mm) | 45.97 |
| Coolant Thru 0 With and X without | No |
| Trade Name | YG Tap STI |
| EDP No. | Thread Size | Diameter | Reach | Overall Length | Flutes | Length/Dia. | Chamfer | Price |
|---|---|---|---|---|---|---|---|---|
| ST162 | #4-40 | .112" | .689" | 2" | 3 | 2.5 x D | Bottoming | $15.30 Add to cart |
| ST182 | #4-48 | .112" | .689" | 2" | 3 | 3.0 x D | Plug | $15.30 Add to cart |
| ST202 | #5-40 | 1/8" | .752" | 2.126" | 3 | 2.5 x D | Bottoming | $15.30 Add to cart |
| ST242 | #6-32 | .138" | 29/32" | 2.374" | 3 | 2.5 x D | Bottoming | $15.30 Add to cart |
| ST262 | #6-40 | .138" | .752" | 2.126" | 3 | 3.0 x D | Plug | $15.30 Add to cart |
| ST282 | #8-32 | .164" | 29/32" | 2.374" | 3 | 2.5 x D | Bottoming | $15.30 Add to cart |
| ST302 | #8-36 | .164" | 29/32" | 2.374" | 3 | 3.0 x D | Plug | $15.30 Add to cart |
| ST322 | #10-24 | .19" | 1" | 2-1/2" | 3 | 2.5 x D | Bottoming | $15.95 Add to cart |
| ST342 | #10-32 | .19" | 1" | 2-1/2" | 3 | 3.0 x D | Plug | $15.95 Add to cart |
| ST362 | #12-24 | .216" | 1.126" | 2.72" | 3 | 2.5 x D | Bottoming | $16.85 Add to cart |
| ST402 | 1/4-20 | 1/4" | 1.126" | 2.72" | 3 | 2.5 x D | Bottoming | $16.85 Add to cart |
| ST422 | 1/4-28 | 1/4" | 1.126" | 2.72" | 3 | 3.0 x D | Plug | $16.85 Add to cart |
| ST442 | 5/16-18 | 5/16" | 1.252" | 2-15/16" | 3 | 2.5 x D | Bottoming | $18.30 Add to cart |
| ST462 | 5/16-24 | 5/16" | 1.252" | 2-15/16" | 3 | 3.0 x D | Plug | $18.30 Add to cart |
| ST482 | 3/8-16 | 3/8" | 2.067" | 3.374" | 3 | 2.5 x D | Bottoming | $23.55 Add to cart |
| ST502 | 3/8-24 | 3/8" | 1-7/16" | 3.157" | 3 | 3.0 x D | Plug | $23.55 Add to cart |
| ST522 | 7/16-14 | 7/16" | 2.067" | 3-19/32" | 3 | 2.5 x D | Bottoming | $27.35 Add to cart |
| ST542 | 7/16-20 | 7/16" | 1.657" | 3.374" | 3 | 3.0 x D | Plug | $27.35 Add to cart |
| ST562 | 1/2-13 | 1/2" | 2.205" | 3.811" | 3 | 2.5 x D | Bottoming | $35.10 Add to cart |
| ST582 | 1/2-20 | 1/2" | 1.657" | 3-19/32" | 3 | 3.0 x D | Plug | $35.10 Add to cart |
| ST602 | 9/16-12 | 9/16" | 2.205" | 4-1/32" | 4 | 2.5 x D | Bottoming | $52.15 Add to cart |
| ST622 | 9/16-18 | 9/16" | 1.811" | 3.811" | 3 | 3.0 x D | Plug | $52.15 Add to cart |
| ST642 | 5/8-11 | 5/8" | 2.48" | 4.252" | 4 | 2.5 x D | Bottoming | $80.85 Add to cart |
| ST662 | 5/8-18 | 5/8" | 1.811" | 4-1/32" | 3 | 3.0 x D | Plug | $80.85 Add to cart |
| ST702 | 3/4-10 | 3/4" | 2.815" | 4.689" | 4 | 2.5 x D | Bottoming | $113.15 Add to cart |
| ST722 | 3/4-16 | 3/4" | 2" | 4-15/32" | 3 | 3.0 x D | Plug | $113.15 Add to cart |
Need This Tool Customized?
Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.
We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.
Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
Common Tool Customization Options
Diameter and OD Modifications
We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.
Bore Modifications for Saw Blades
Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.
Length Adjustments
Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.
Shank Modifications
Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.
Radius, Chamfer, and Corner Changes
We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.
