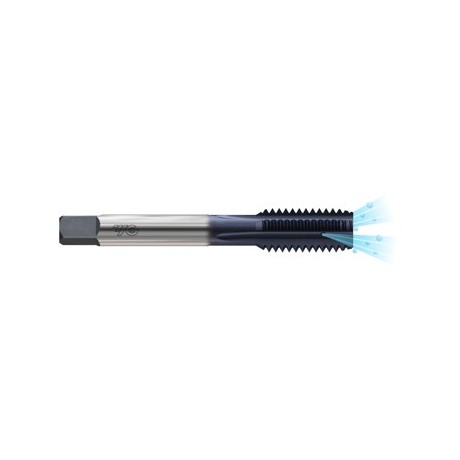

YG1-TR463R – 5/16-24 H3 – Hss-Pm Straight Flute Radial Coolant Hole Tialn Coated Tap

Original price was: $91.79.Current price is: $68.85.

YG Tap TiNi

UPC: N/A SKU: YG1-TR463R Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR463R
Description	HSS-PM STRAIGHT FLUTE RADIAL COOLANT HOLE TIALN COATED TAP
Size	5/16-24 H3
Available Qty.	Call for availability

Specifications

Serial #	101
Series	TR-R
Long Description	5/16-24," 2.720 OAL HSS-PM 4 Flute TiALN H3 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	5/16-24
# of Flutes	4
Diameter (inch)	0.3125
Diameter (metric)	7.9375
Pitch	24
Thread Series	UNF
Pitch Limit	H3
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	2.720
OAL (metric)	69.088
Thd. Lgth. (inch)	0.669
Thd. Lgth. (metric)	16.99
Sqr. Lgth. (inch)	0.38
Sqr. Lgth. (metric)	9.65
Shk. Dia. (inch)	0.318
Shk. Dia. (metric)	8.08
Sqr. Size (inch)	0.238
Sqr. Size (metric)	6.05
Neck Dia (inch)	0.254
Neck Dia (metric)	6.45
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.2746
Drill Size (mm)	6.975
Connection (in)	0.318 x 0.238
Connection (mm)	8.08 x 6.05
Length/ Diameter	2.0xD
Useable Length (in)	1.126
Useable Length (mm)	28.6
Coolant Thru 0 With and X without	Yes
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
