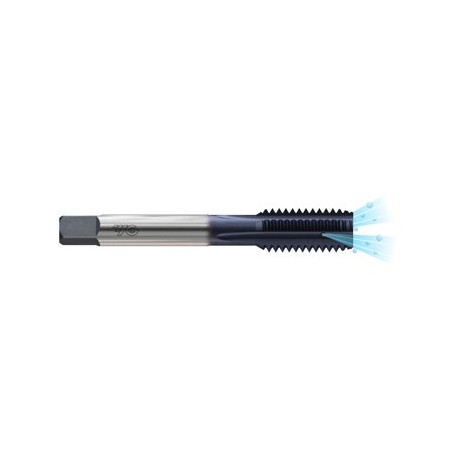

YG1-TR563R – 1/2-13 H3 – Hss-Pm Straight Flute Radial Coolant Hole Tialn Coated Tap

Original price was: $127.52.Current price is: $95.65.

YG Tap TiNi

UPC: N/A SKU: YG1-TR563R Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR563R
Description	HSS-PM STRAIGHT FLUTE RADIAL COOLANT HOLE TIALN COATED TAP
Size	1/2-13 H3
Available Qty.	Call for availability

Specifications

Serial #	109
Series	TR-R
Long Description	1/2-13," 3.374 OAL HSS-PM 4 Flute TiALN H3 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	1/2-13
# of Flutes	4
Diameter (inch)	0.5
Diameter (metric)	12.7
Pitch	13
Thread Series	UNC
Pitch Limit	H3
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	3.374
OAL (metric)	85.7
Thd. Lgth. (inch)	0.984
Thd. Lgth. (metric)	24.99
Sqr. Lgth. (inch)	0.44
Sqr. Lgth. (metric)	11.18
Shk. Dia. (inch)	0.367
Shk. Dia. (metric)	9.32
Sqr. Size (inch)	0.275
Sqr. Size (metric)	6.99
Neck Dia (inch)	0.354
Neck Dia (metric)	8.99
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.4301
Drill Size (mm)	10.923
Connection (in)	0.367 x 0.275
Connection (mm)	9.32 x 6.99
Length/ Diameter	2.0xD
Useable Length (in)	1.657
Useable Length (mm)	42.09
Coolant Thru 0 With and X without	Yes
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
