Sale!

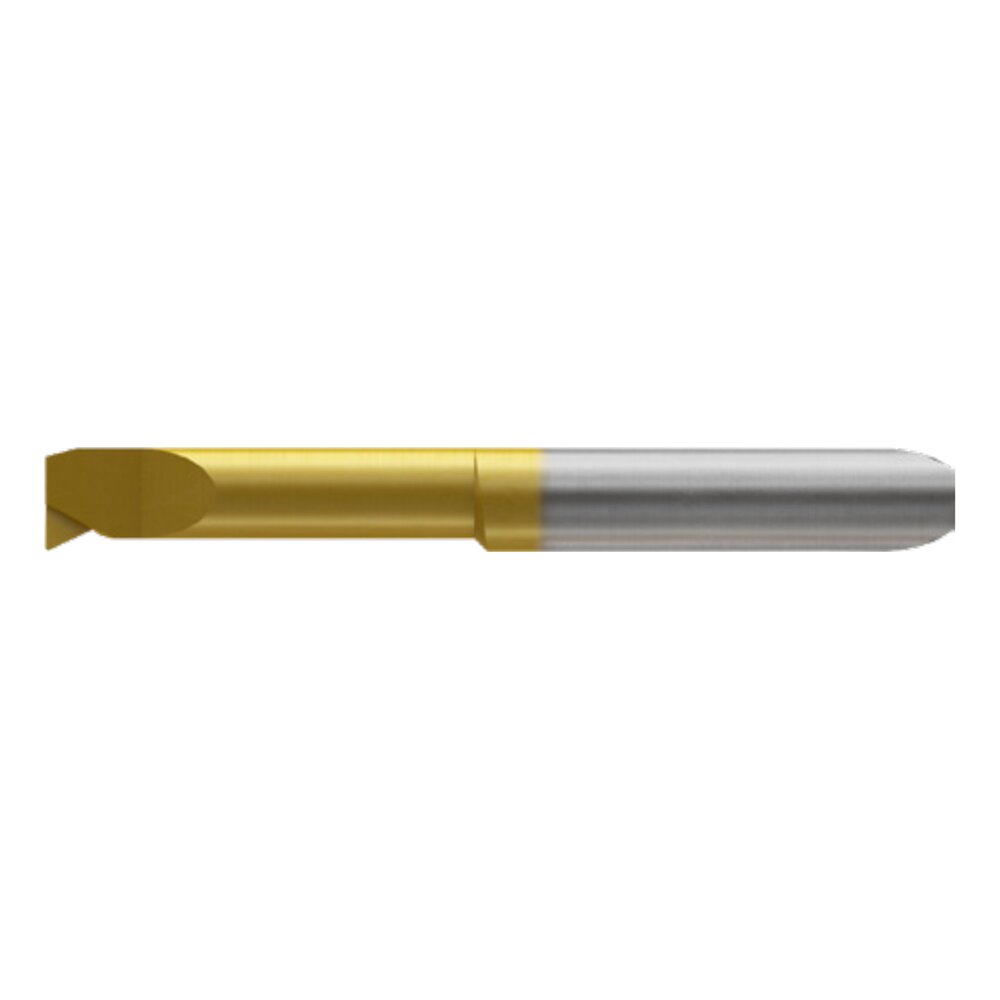

YG1-NCBF04R1006010T – 1(R0.1)X4X(6)X28 – Ncbf04R-10.06-010-Yg812

Original price was: $70.21.Current price is: $64.70.

Nano Cut Insert

UPC: N/A SKU: YG1-NCBF04R1006010T Categories: Indexable, Indexable, Nano Cut Insert, YG-1

EDP No.	NCBF04R1006010T
Description	NCBF04R-10.06-010-YG812
Size	1(R0.1)X4X(6)X28
Available Qty.	Call for availability

Specifications

Series	NCBF
ANSI Code	NCBF4R-10.06-010
ISO Code	NCBF4R-10.06-010
ANSI	ISO
Shape	Boring 90̊
Brand	Nano Cut
# of Cutting Edges	1
Clearance Angle	8°
Insert Type	BF-90̊ Boring
KARP	90̊
DCON	4
DMIN	0.9906
LU	0.0094
RE	0.1016
CDX	0.1016
WF	0.4572
OHX	12.954
OAL	27.94
Tool Direction	Right hand
Grade	YG812
Hardness of material	4140 (HRc 20)
Coating Process	PVD
Coating	Bright
Application	Alloy Steel
System of Measurement	Inch
