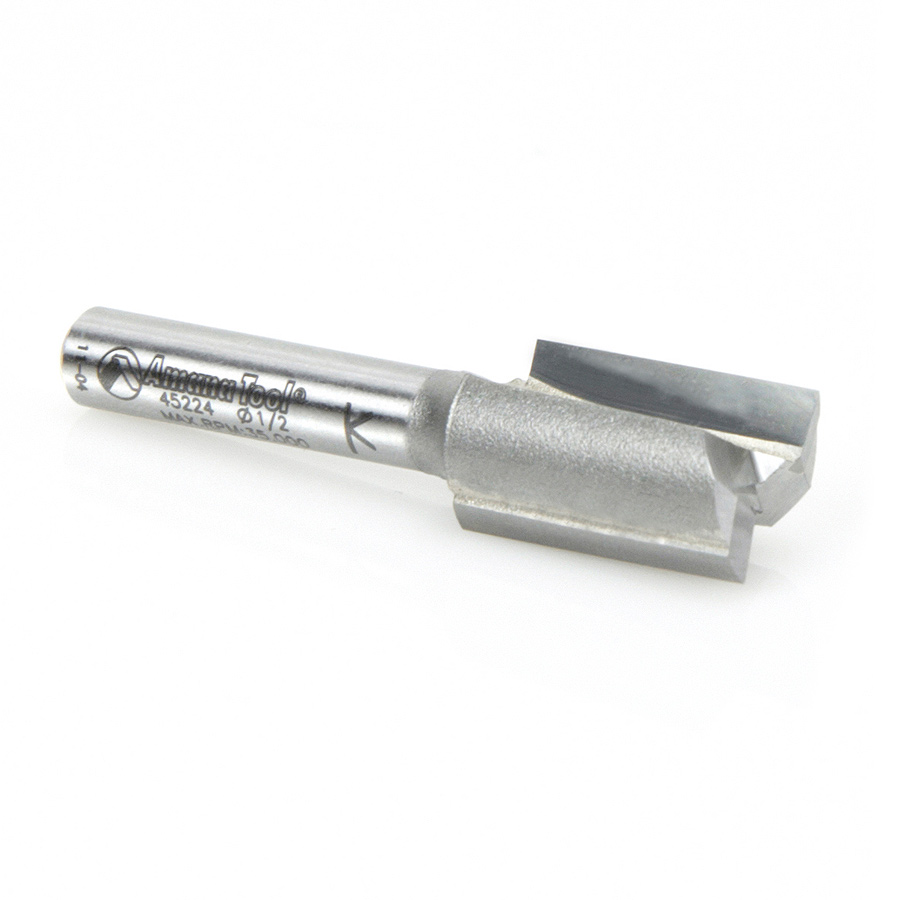

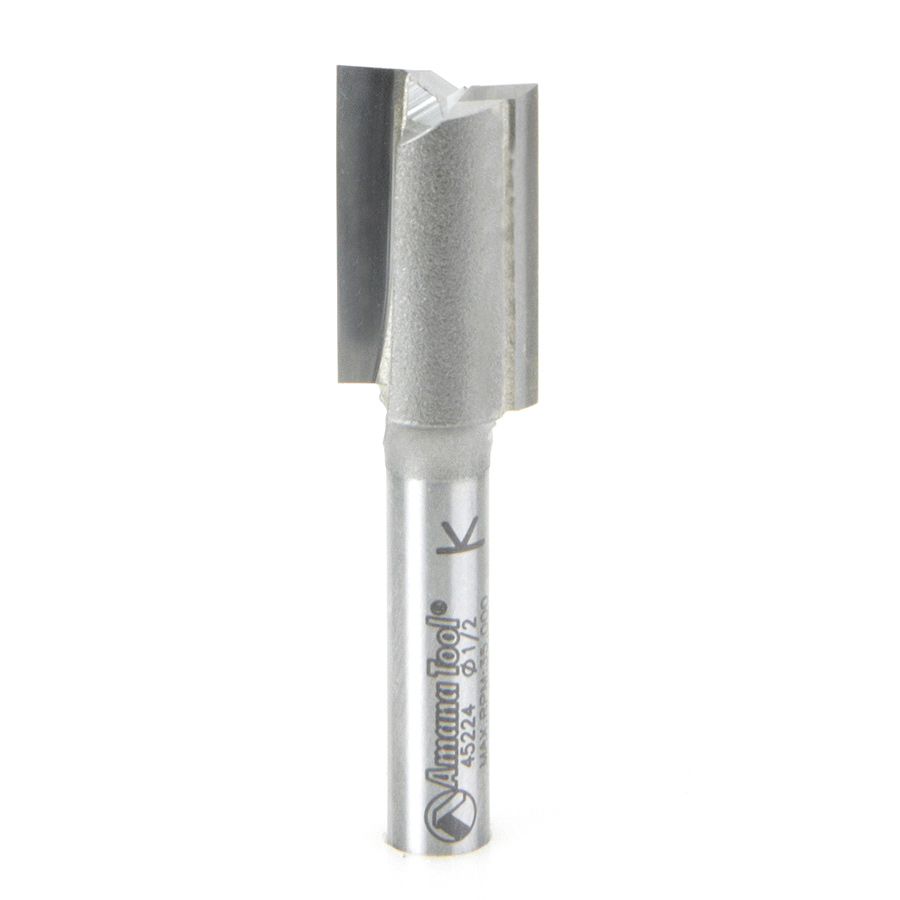

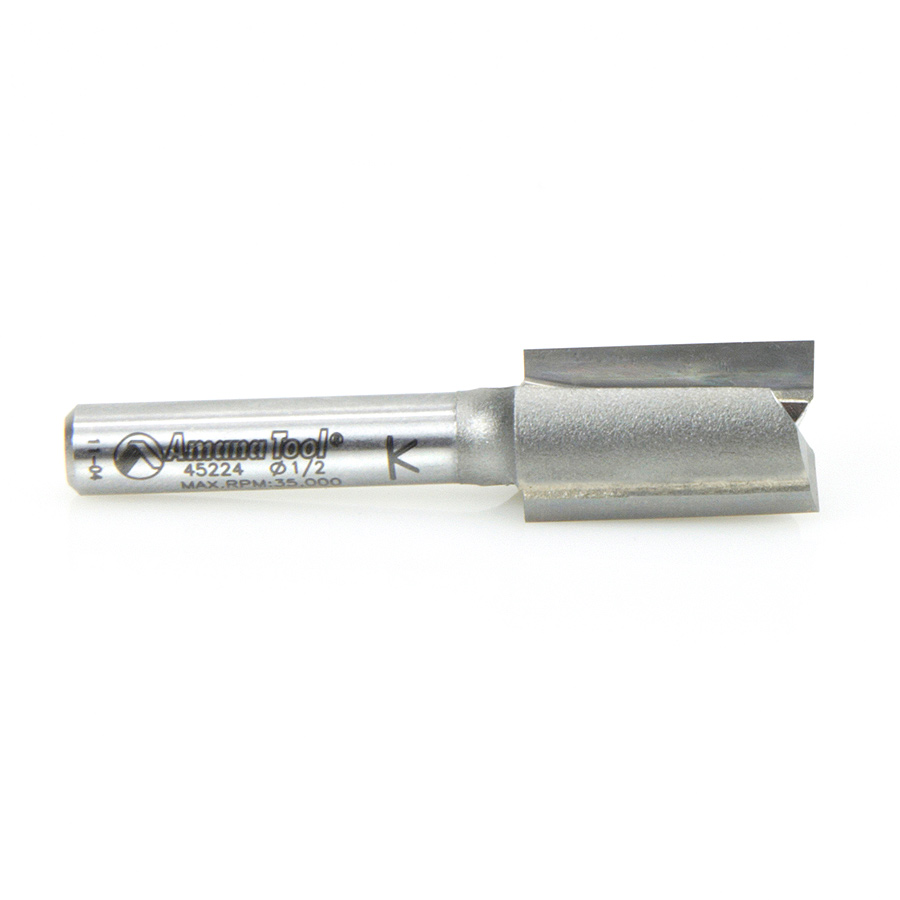

45224 Carbide Tipped Straight Plunge High Production 1/2 Dia x 3/4 x 1/4 Inch Shank

Amana 45224 Carbide Tipped Straight Plunge High Production 1/2 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 45224 Carbide Tipped Straight Plunge High Production 1/2 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 45224
Availability: InStock

Original price was: $34.25.Current price is: $25.69.

2 FLUTE 1/2 DIA. 1/4 SHANK

UPC: 738685852248 SKU: Amana 45224 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	1/2
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	1-3/4
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Description	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	–	45190
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	5	45190-5
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	1-1/2	2	–	46480
5/64 (1.98mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-3/4	2	–	45191
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	–	45192
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	5	45192-5
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-3/4	2	–	46482
1/8 (3.18mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-1/2	2	–	45199
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45200
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45200-5
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45200-LH
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45201
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45202
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45202-5
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	–	45239
13/64 (5.16mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45217
7/32 (5.56mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45206
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45203
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45204
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	2	–	45205
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45208
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45208-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45210
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	–	45210-01
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	45210-3
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-3/4	2	–	45210-3.75
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	5	45210-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45210-LH
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	–	45211
1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45408
1/4 (6.35mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45486
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45212
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	45212-01
9/32 (7.14mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	–	45409
5/16 (7.94mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	3	–	45186-3
5/16 (7.94mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	2	–	45214-01
5/16 (7.94mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45242
5/16 (7.94mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45410
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	5	45412-5
3/8 (9.53mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45216
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45218
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	5	45218-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45218S
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	–	45220
3/8 (9.53mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45413
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45414
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	5	45414-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	5	45415-5
13/32 (10.32mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	–	45193
13/32 (10.32mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45401
7/16 (11.11mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	–	45222
15/32 (11.91mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45223
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	–	45224-01
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	–	45226
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	2	–	45244
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	–	45245
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	–	45419
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45420
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45422
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/4	2	–	45424
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	3-1/2	2	–	45426S
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	4-1/2	2	–	45427
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	5-1/2	2	–	45427-01
1/2 (12.70mm)	3 (76.20mm)	1/2 (12.70mm)	5-1/4	2	–	45477
17/32 (13.49mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45429
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/8	2	–	45227
9/16 (14.29mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45428
19/32 (15.08mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	–	45238-01
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45228
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45228-5
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45247
5/8 (15.88mm)	1-1/4	1/4 (6.35mm)	2-7/8	2	–	45249
5/8 (15.88mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	–	45430
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45432-5
5/8 (15.88mm)	2 (50.80mm)	1/2 (12.70mm)	3-3/4	2	–	45433
5/8 (15.88mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45434
21/32 (16.67mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45435
11/16 (17.46mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45229
11/16 (17.46mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45436
1-1/16	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45459
23/32 (18.26mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45231
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	–	45181
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45230
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45230-5
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45251
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	2	–	45251-01
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	–	45438
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45440
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45440-5
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	–	45441
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45442
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1+1	–	RC-1024
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45443-5
13/16 (20.64mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45232
13/16 (20.64mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45444
7/8 (22.23mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45234
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45446-5
15/16 (23.81mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45182
1 (25.40mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45236
1 (25.40mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45403
1 (25.40mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	–	45447
1 (25.40mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45448
1-1/8	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45449
2 (50.80mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45480
1-1/4	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45450
1-3/4	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45453
1-1/2	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45452
–	–	–	–	—-	–	AMS-103
–	–	–	–	—-	–	DRB-420

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
