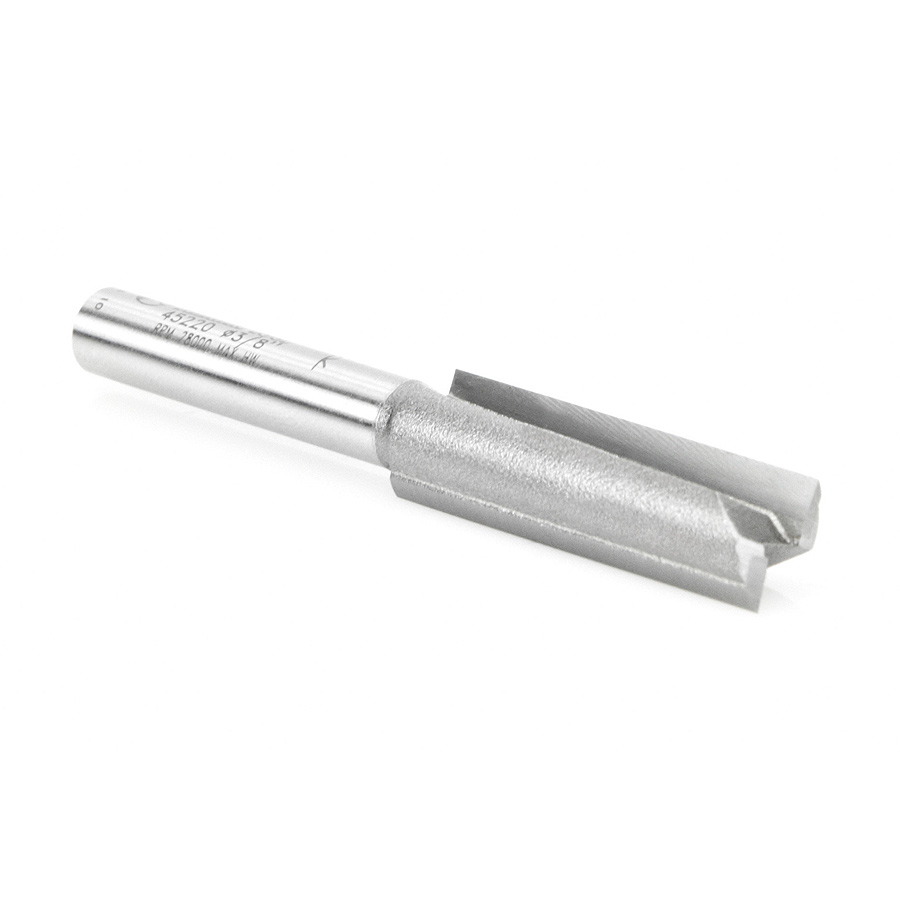

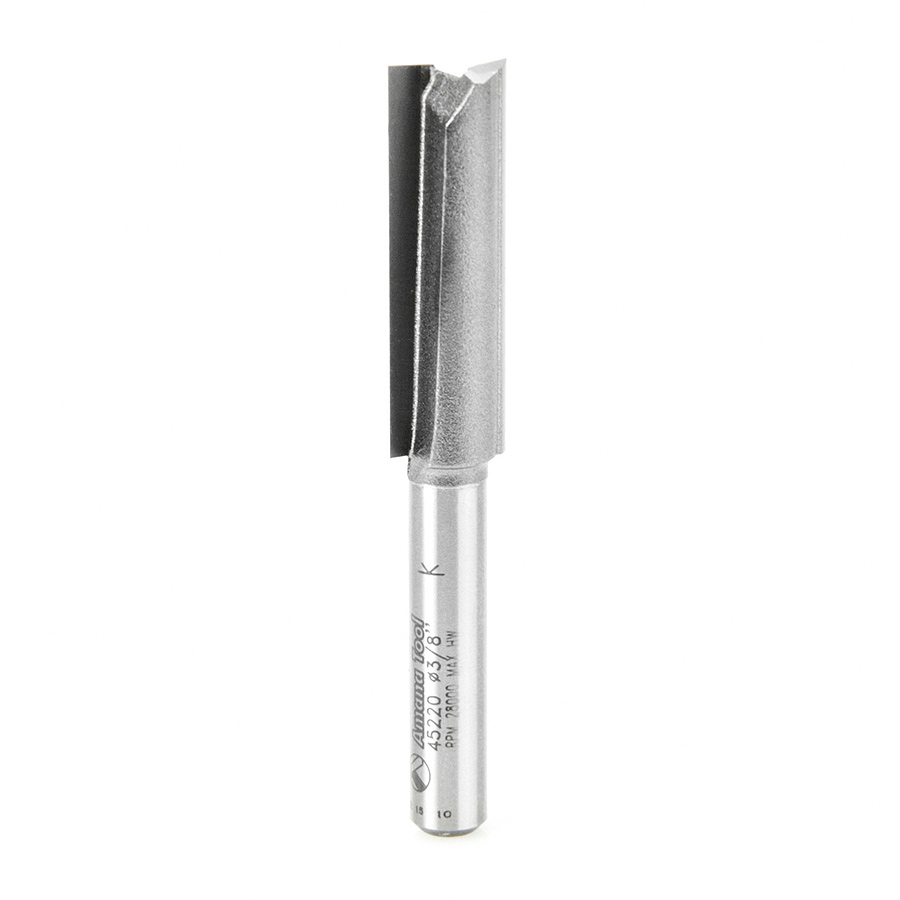

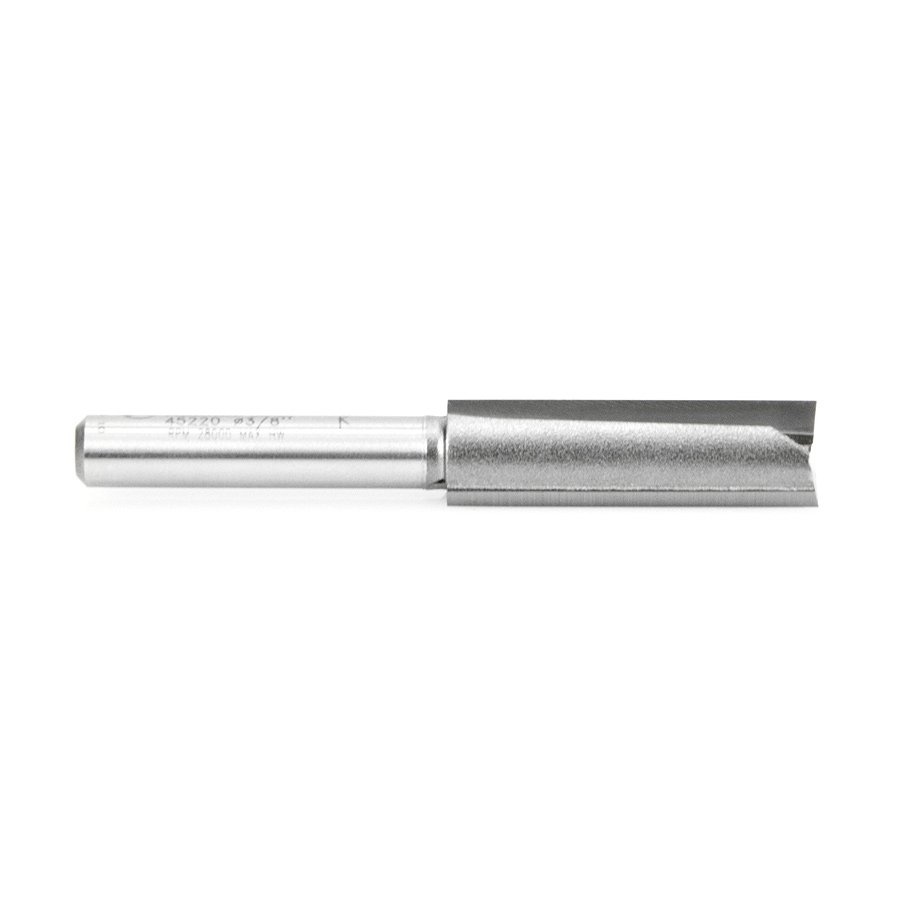

45220 Carbide Tipped Straight Plunge High Production 3/8 Dia x 1-1/4 x 1/4 Inch Shank

Amana 45220 Carbide Tipped Straight Plunge High Production 3/8 Dia x 1-1/4 x 1/4 Inch Shank

Name: Amana 45220 Carbide Tipped Straight Plunge High Production 3/8 Dia x 1-1/4 x 1/4 Inch Shank
SKU: Amana 45220
Availability: InStock

Original price was: $39.70.Current price is: $29.78.

2 FLUTE 3/8 DIA. 1/4 SHANK

UPC: 738685852200 SKU: Amana 45220 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

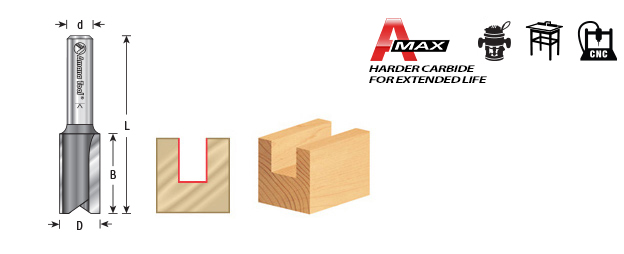

Specifications

Diameter (D)	3/8
Cutting Height (B)	1-1/4
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	45190
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	45190-5
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	1-1/2	2	46480
5/64 (1.98mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-3/4	2	45191
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192-5
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-3/4	2	46482
1/8 (3.18mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-1/2	2	45199
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45200
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45200-LH
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45201
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202-5
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	45239
13/64 (5.16mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45217
7/32 (5.56mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45206
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45203
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	45204
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	2	45205
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45208
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45208-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45210
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	45210-01
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	45210-3
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-3/4	2	45210-3.75
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45210-LH
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	45211
1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	45408
1/4 (6.35mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45486
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45212
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	45212-01
9/32 (7.14mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	45409
5/16 (7.94mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	3	45186-3
5/16 (7.94mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	2	45214-01
5/16 (7.94mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45242
5/16 (7.94mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	45410
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45216
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	2	45218S
3/8 (9.53mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	45413
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45414
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45414-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
13/32 (10.32mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	45193
13/32 (10.32mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	45401
7/16 (11.11mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	45222
15/32 (11.91mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45223
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-3/4	2	45224
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45224-01
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	45226
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	2	45244
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	45245
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45419
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45420
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	45422
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/4	2	45424
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	3-1/2	2	45426S
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	4-1/2	2	45427
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	5-1/2	2	45427-01
1/2 (12.70mm)	3 (76.20mm)	1/2 (12.70mm)	5-1/4	2	45477
17/32 (13.49mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45429
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/8	2	45227
9/16 (14.29mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45428
19/32 (15.08mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45238-01
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45228
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45228-5
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45247
5/8 (15.88mm)	1-1/4	1/4 (6.35mm)	2-7/8	2	45249
5/8 (15.88mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	45430
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432-5
5/8 (15.88mm)	2 (50.80mm)	1/2 (12.70mm)	3-3/4	2	45433
5/8 (15.88mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	45434
21/32 (16.67mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45435
11/16 (17.46mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45229
11/16 (17.46mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45436
1-1/16	1-1/4	1/2 (12.70mm)	2-7/8	2	45459
23/32 (18.26mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45231
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	45181
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45230
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45230-5
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45251
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	2	45251-01
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	45438
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45440
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45440-5
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	45441
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	45442
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1+1	RC-1024
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443-5
13/16 (20.64mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45232
13/16 (20.64mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45444
7/8 (22.23mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45234
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446-5
15/16 (23.81mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45182
1 (25.40mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45236
1 (25.40mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	45403
1 (25.40mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	45447
1 (25.40mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45448
1-1/8	1-1/4	1/2 (12.70mm)	2-7/8	2	45449
2 (50.80mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45480
1-1/4	1-1/4	1/2 (12.70mm)	2-7/8	2	45450
1-3/4	1-1/4	1/2 (12.70mm)	2-7/8	2	45453
1-1/2	1-1/4	1/2 (12.70mm)	2-7/8	2	45452

Weight	0.06 lbs
