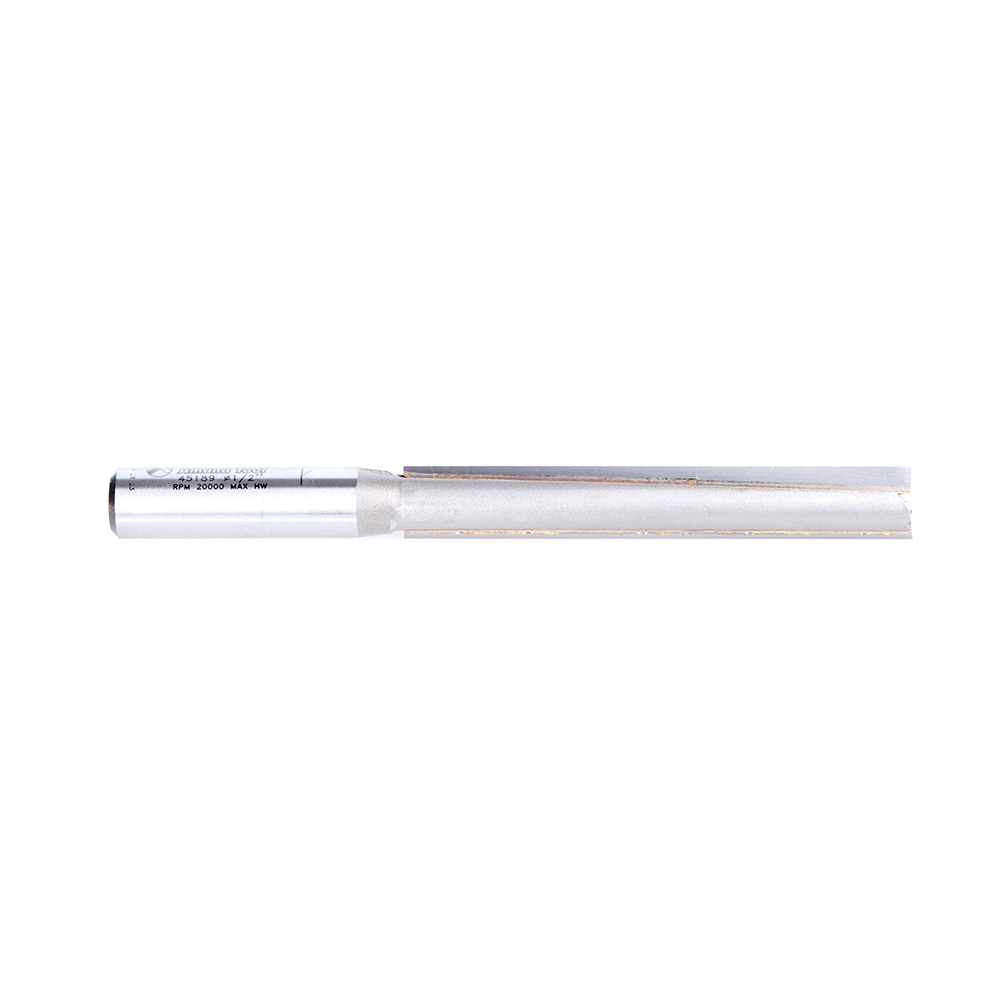

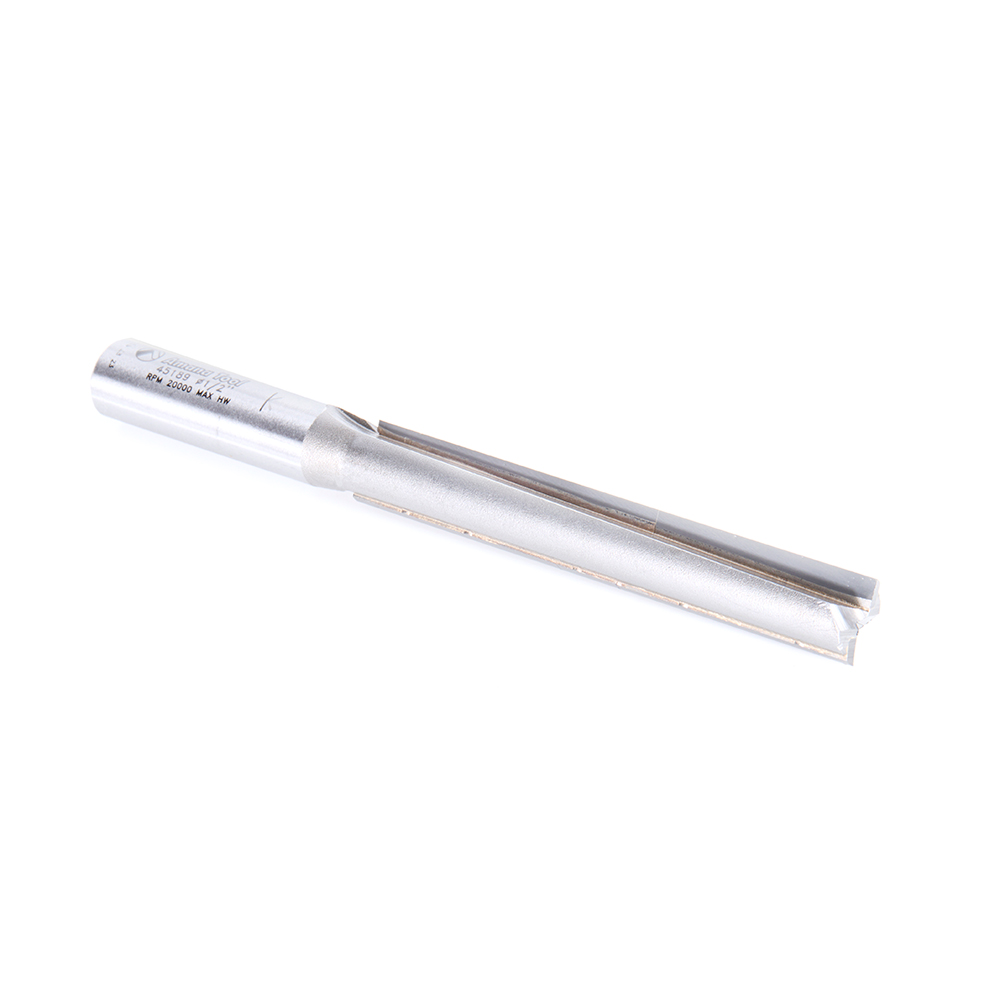

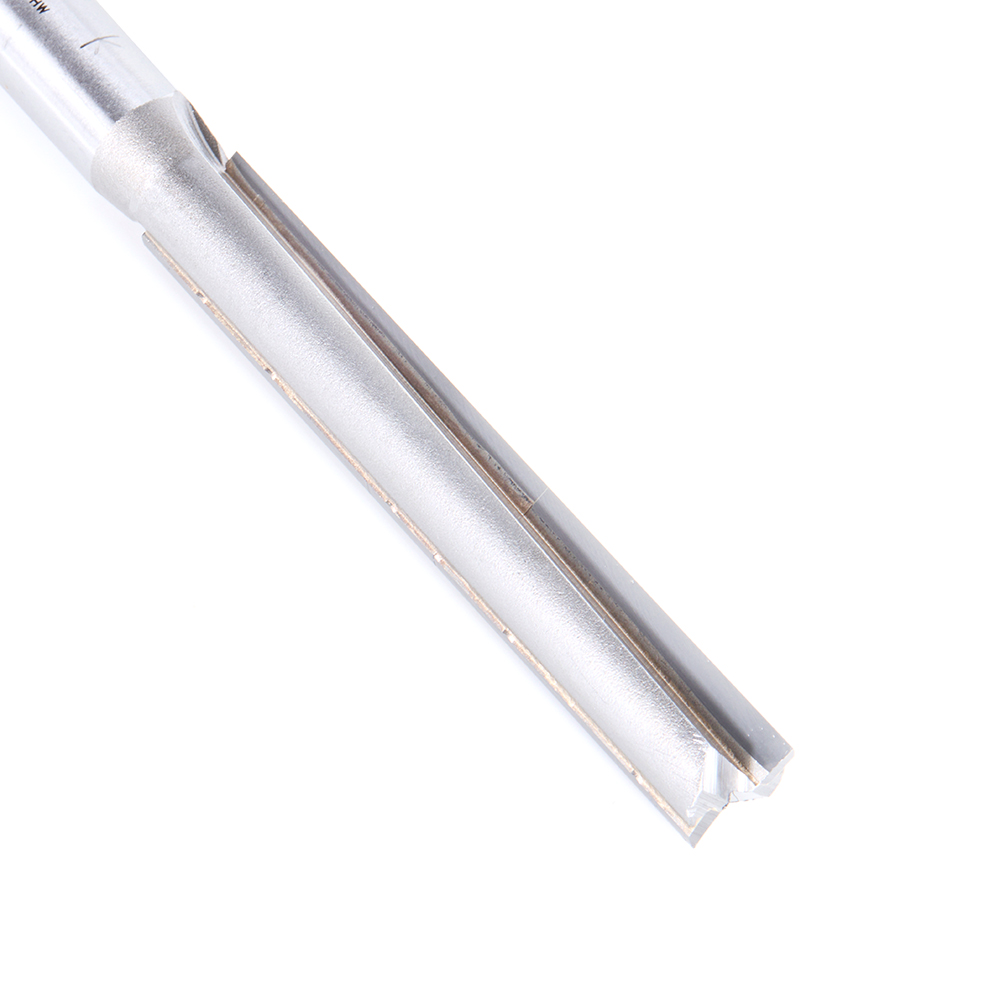

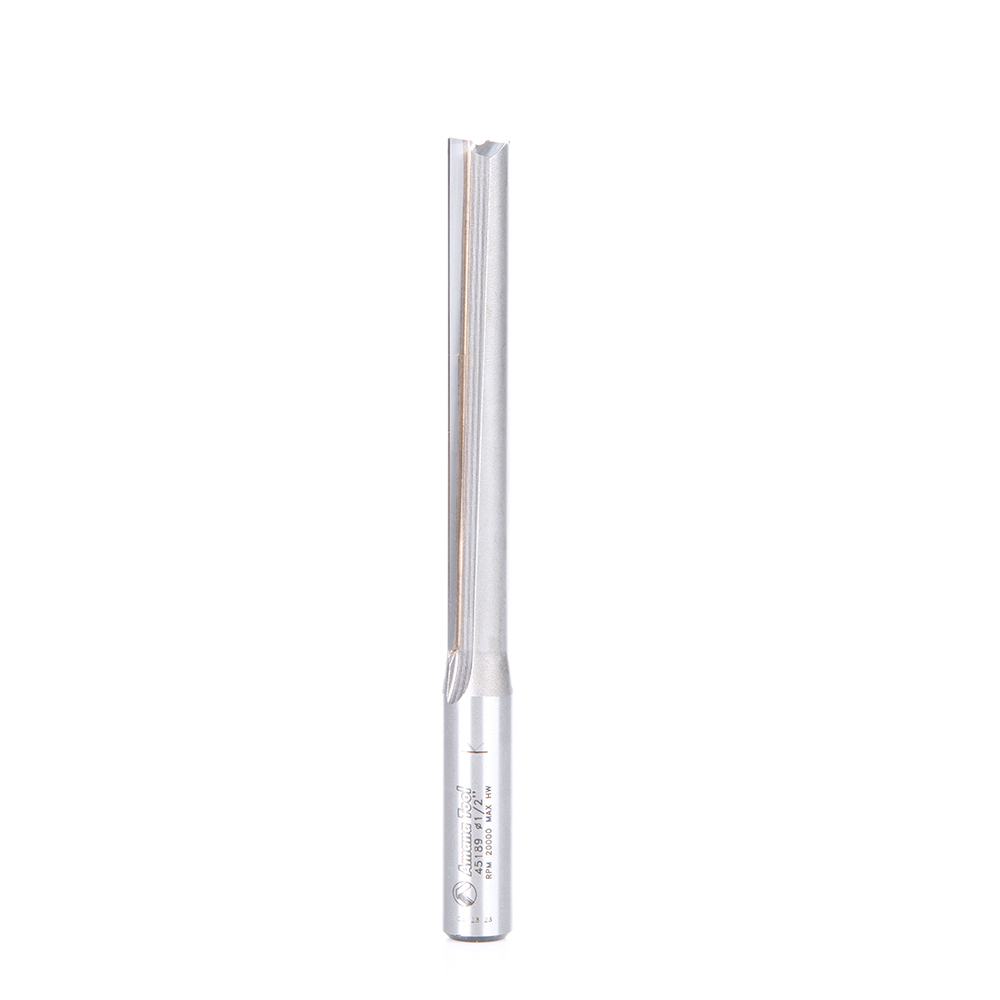

Amana 45189 Carbide Tipped Straight Plunge High Production 1/2 Dia x 3-1/2 x 1/2 Inch Shank
Original price was: $128.10.$96.08Current price is: $96.08.
1/2DIA 3-1/2″CL PLUNGE 1/2 SHK
Item Description

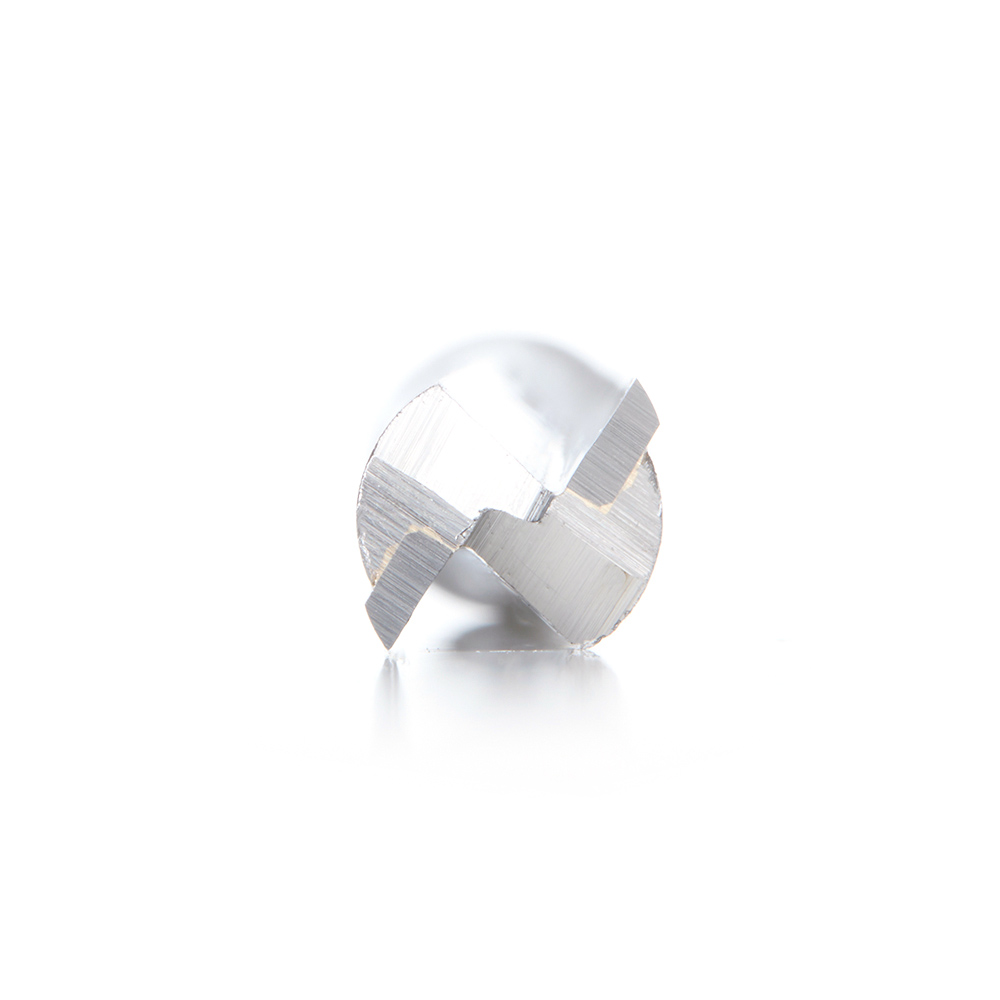

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides’ resistance to wear
- Super clean cuts
Not guaranteed due to extreme length.

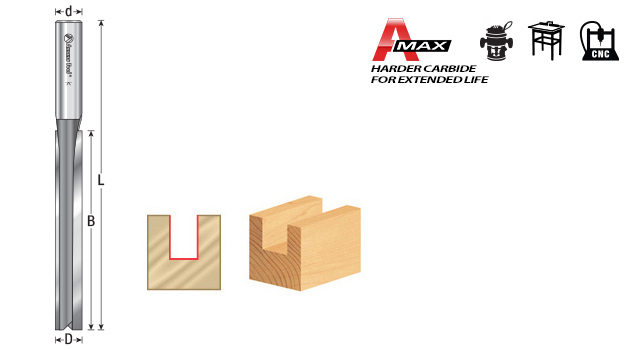

Specifications
| Diameter (D) | 1/2 |
|---|---|
| Cutting Height (B) | 3-1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 5-17/32 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Flutes | Description | Tool No. |
|---|---|---|---|---|---|---|
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 1-1/2 | 2 | – | 46480 |
| 5/64 (1.98mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 45191 |
| 1/8 (3.18mm) | 7/16 (11.11mm) | 1/8 (3.18mm) | 1-1/2 | 2 | – | 45199 |
| 5/32 (3.97mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45201 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/16 | 2 | – | 45239 |
| 13/64 (5.16mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45217 |
| 7/32 (5.56mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45206 |
| 15/64 (5.95mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45203 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45204 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 3-1/4 | 2 | – | 45205 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45210-01 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-7/8 | 2 | – | 45211 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45408 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45486 |
| 9/32 (7.14mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45409 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-3/4 | 2 | – | 45214-01 |
| 5/16 (7.94mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45242 |
| 5/16 (7.94mm) | 1.03 (26.16mm) | 1/4 (6.35mm) | 2-13/16 | 2 | – | 45270 |
| 5/16 (7.94mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45410 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45216 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45218S |
| 3/8 (9.53mm) | 1-1/4 | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45220 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45413 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 5 | 45414-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414-LH |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414-PS |
| 13/32 (10.32mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45193 |
| 13/32 (10.32mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45401 |
| 7/16 (11.11mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45222 |
| 7/16 (11.11mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 45416 |
| 15/32 (11.91mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45223 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 45224 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45224-01 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45226 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | 2 | – | 45244 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45245 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45418 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | 5 | 45418-5 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 45419 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420-LH |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420-PS |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422-LH |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422-PS |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 4-1/4 | 2 | – | 45424 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | —- | – | 45426 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | —- | 5 | 45426-5 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | 2 | – | 45426-PS |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-1/2 | 2 | – | 45426S |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 4-1/2 | 2 | – | 45427 |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 5-1/2 | 2 | – | 45427-01 |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 4-1/2 | 2 | 5 | 45427-5 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-9/64 | 2 | – | 45494 |
| 17/32 (13.49mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45429 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45227 |
| 9/16 (14.29mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45428 |
| 19/32 (15.08mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45238-01 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45247 |
| 5/8 (15.88mm) | 1-1/4 | 1/4 (6.35mm) | 2-7/8 | 2 | – | 45249 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45430 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45432-LH |
| 5/8 (15.88mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-3/4 | 2 | – | 45433 |
| 5/8 (15.88mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45434 |
| 21/32 (16.67mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45435 |
| 11/16 (17.46mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45229 |
| 11/16 (17.46mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45436 |
| 1-1/16 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45459 |
| 23/32 (18.26mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45231 |
| 3/4 (19.05mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 45181 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45251 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 2 | – | 45251-01 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45438 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45440 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45440-LH |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45441 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45441-LH |
| 3/4 (19.05mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45442 |
| 3/4 (19.05mm) | 2 (50.80mm) | 3/4 (19.05mm) | 4 (101.60mm) | 2 | – | 45455 |
| 3/4 (19.05mm) | 2-1/2 | 3/4 (19.05mm) | 4-1/2 | 2 | – | 45456 |
| 3/4 (19.05mm) | 2-1/2 | 3/4 (19.05mm) | 5 (127.00mm) | 2 | – | 45457 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1+1 | – | RC-1024 |
| 13/16 (20.64mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45232 |
| 13/16 (20.64mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45444 |
| 7/8 (22.23mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45234 |
| 7/8 (22.23mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45446-LH |
| 15/16 (23.81mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 45182 |
| 1 (25.40mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45236 |
| 1 (25.40mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45403 |
| 1 (25.40mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45447 |
| 1 (25.40mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45448 |
| 1-1/8 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45449 |
| 2 (50.80mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45480 |
| 2 (50.80mm) | 1-1/4 | 3/4 (19.05mm) | 2-7/8 | 2 | – | 45480-CNC |
| 1-1/4 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45450 |
| 1-3/4 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45453 |
| 1-1/2 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45452 |
| 1-1/2 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45452-CNC |
| Weight | 0.3 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
