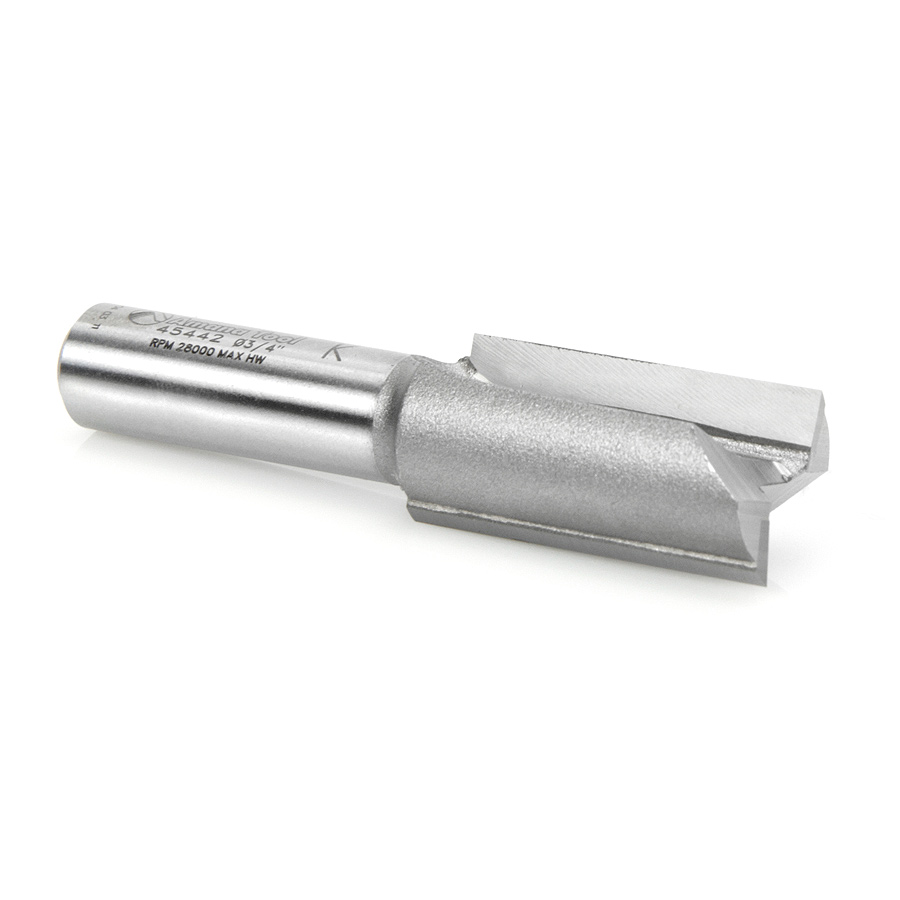

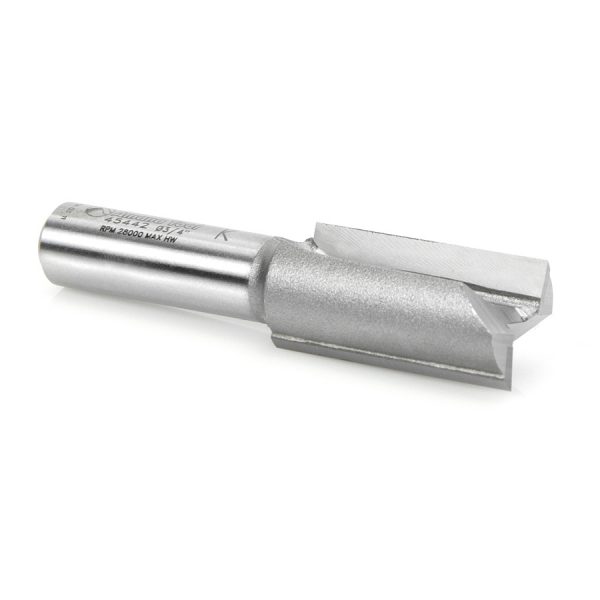

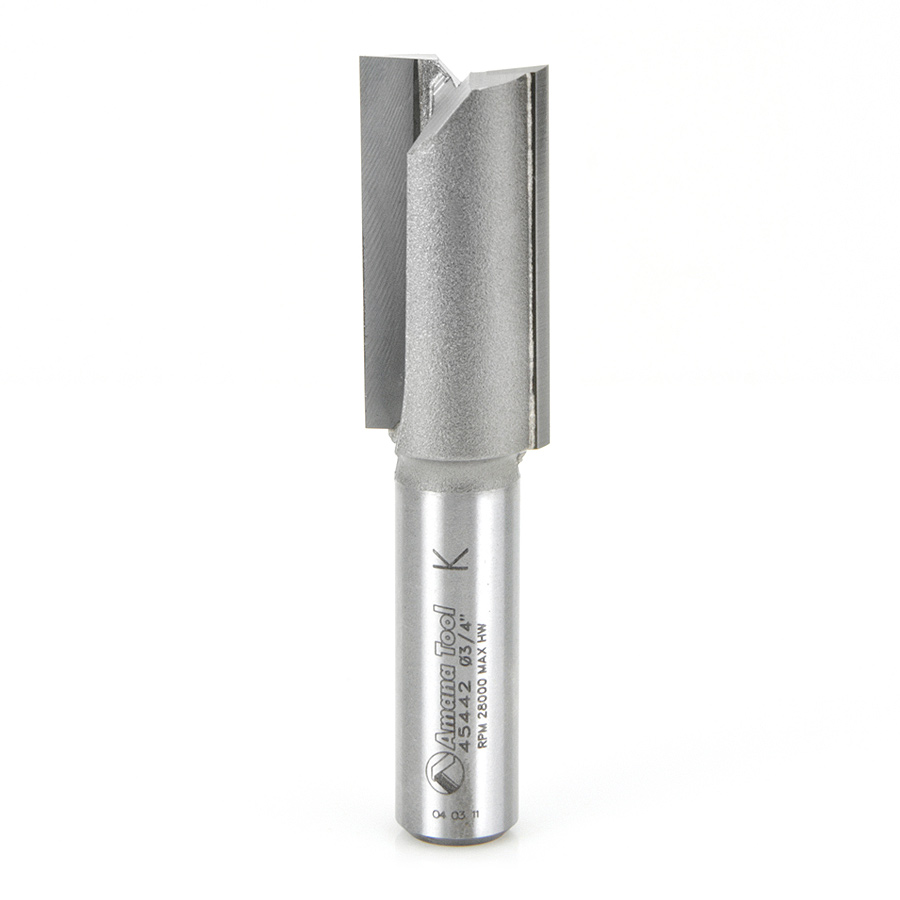

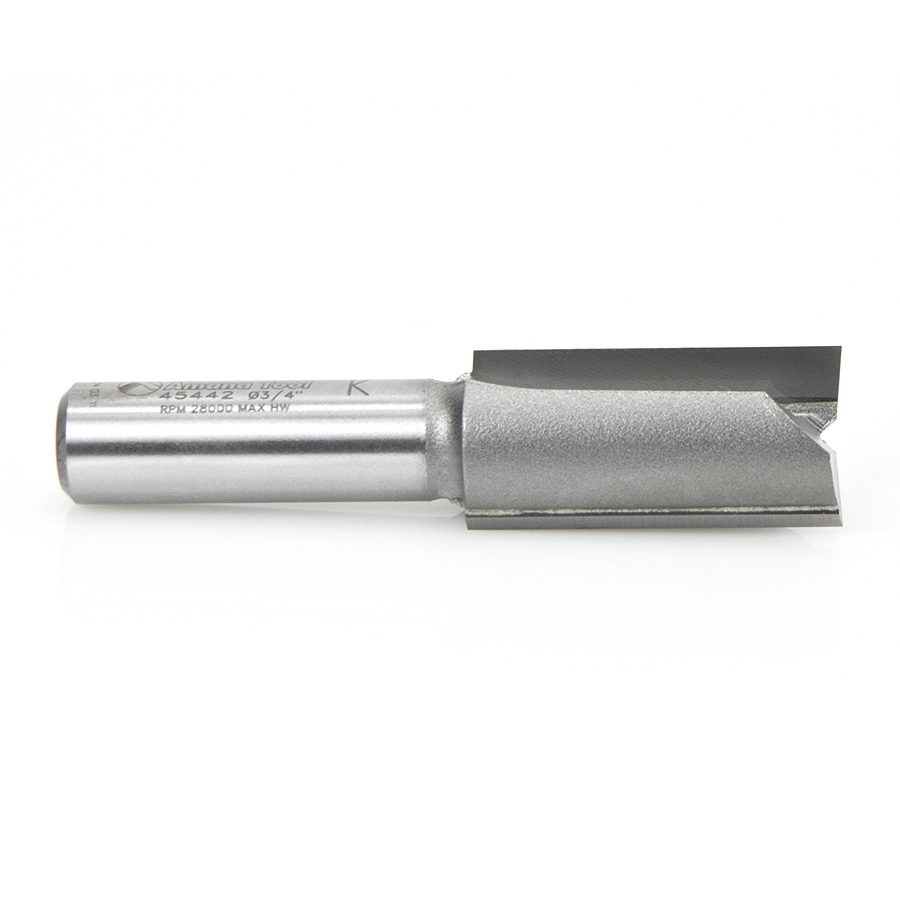

Amana 45442 Carbide Tipped Straight Plunge 3/4 Dia x 1-1/2 x 1/2 Inch Shank
Original price was: $52.85.$39.64Current price is: $39.64.
2 FLUTE 3/4 DIA 1/2 SHANK
Item Description
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.
Excellent for Cutting:
- Wood
- MDF
- Plywood
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides’ resistance to wear
- Super clean cuts

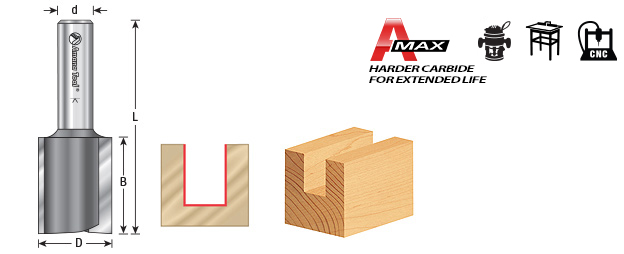

Specifications
| Diameter (D) | 3/4 |
|---|---|
| Cutting Height (B) | 1-1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/8 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Flutes | Description | Tool No. |
|---|---|---|---|---|---|---|
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 1-5/8 | 2 | – | 45190 |
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 1-5/8 | 2 | 5 | 45190-5 |
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 1-1/2 | 2 | – | 46480 |
| 5/64 (1.98mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 45191 |
| 3/32 (2.38mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 45192 |
| 3/32 (2.38mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 5 | 45192-5 |
| 1/8 (3.18mm) | 7/16 (11.11mm) | 1/8 (3.18mm) | 1-1/2 | 2 | – | 45199 |
| 1/8 (3.18mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45200 |
| 1/8 (3.18mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45200-LH |
| 5/32 (3.97mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45201 |
| 3/16 (4.76mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45202 |
| 3/16 (4.76mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 5 | 45202-5 |
| 3/16 (4.76mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/16 | 2 | – | 45239 |
| 13/64 (5.16mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45217 |
| 7/32 (5.56mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45206 |
| 15/64 (5.95mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45203 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45204 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 3-1/4 | 2 | – | 45205 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45208 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 5 | 45208-5 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45210 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45210-01 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45210-LH |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-7/8 | 2 | – | 45211 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45408 |
| 1/4 (6.35mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-27/32 | 3 | – | 45408-3 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45486 |
| 7mm | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45254 |
| 9/32 (7.14mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45409 |
| 5/16 (7.94mm) | 1-1/8 | 1/2 (12.70mm) | 3 (76.20mm) | 3 | – | 45186-3 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-3/4 | 2 | – | 45214-01 |
| 5/16 (7.94mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45242 |
| 5/16 (7.94mm) | 1.03 (26.16mm) | 1/4 (6.35mm) | 2-13/16 | 2 | – | 45270 |
| 5/16 (7.94mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45410 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45412 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 5 | 45412-5 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45216 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45218 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | 5 | 45218-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45218S |
| 3/8 (9.53mm) | 1-1/4 | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45220 |
| 3/8 (9.53mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45413 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 5 | 45414-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414-LH |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 2 | – | 45414-PS |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 45415 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | 5 | 45415-5 |
| 13/32 (10.32mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45193 |
| 13/32 (10.32mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/2 | 2 | – | 45401 |
| 7/16 (11.11mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45222 |
| 7/16 (11.11mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 45416 |
| 15/32 (11.91mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45223 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 1-3/4 | 2 | – | 45224 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45224-01 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45226 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | 2 | – | 45244 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-1/2 | 2 | – | 45245 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45418 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | 5 | 45418-5 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 45419 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420-LH |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45420-PS |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422-LH |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45422-PS |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 4-1/4 | 2 | – | 45424 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | —- | – | 45426 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | —- | 5 | 45426-5 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | 2 | – | 45426-PS |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-1/2 | 2 | – | 45426S |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 4-1/2 | 2 | – | 45427 |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 5-1/2 | 2 | – | 45427-01 |
| 1/2 (12.70mm) | 2-1/2 | 1/2 (12.70mm) | 4-1/2 | 2 | 5 | 45427-5 |
| 1/2 (12.70mm) | 3 (76.20mm) | 1/2 (12.70mm) | 5-1/4 | 2 | – | 45477 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-9/64 | 2 | – | 45494 |
| 17/32 (13.49mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45429 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/8 | 2 | – | 45227 |
| 9/16 (14.29mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45428 |
| 19/32 (15.08mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45238-01 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45228 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 5 | 45228-5 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45247 |
| 5/8 (15.88mm) | 1-1/4 | 1/4 (6.35mm) | 2-7/8 | 2 | – | 45249 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45430 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45432 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | 5 | 45432-5 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45432-LH |
| 5/8 (15.88mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-3/4 | 2 | – | 45433 |
| 5/8 (15.88mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45434 |
| 21/32 (16.67mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45435 |
| 11/16 (17.46mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45229 |
| 11/16 (17.46mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45436 |
| 1-1/16 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45459 |
| 23/32 (18.26mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45231 |
| 3/4 (19.05mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-1/4 | 2 | – | 45181 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45230 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 5 | 45230-5 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/4 | 2 | – | 45251 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 2 | – | 45251-01 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-5/8 | 2 | – | 45438 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45440 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | 5 | 45440-5 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45440-LH |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45441 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45441-LH |
| 3/4 (19.05mm) | 2 (50.80mm) | 3/4 (19.05mm) | 4 (101.60mm) | 2 | – | 45455 |
| 3/4 (19.05mm) | 2-1/2 | 3/4 (19.05mm) | 4-1/2 | 2 | – | 45456 |
| 3/4 (19.05mm) | 2-1/2 | 3/4 (19.05mm) | 5 (127.00mm) | 2 | – | 45457 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 1+1 | – | RC-1024 |
| 25/32 (19.84mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45443 |
| 25/32 (19.84mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | 5 | 45443-5 |
| 13/16 (20.64mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45232 |
| 13/16 (20.64mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45444 |
| 7/8 (22.23mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45234 |
| 7/8 (22.23mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45446 |
| 7/8 (22.23mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | 5 | 45446-5 |
| 7/8 (22.23mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45446-LH |
| 15/16 (23.81mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | 2 | – | 45182 |
| 1 (25.40mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | – | 45236 |
| 1 (25.40mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/8 | 2 | – | 45403 |
| 1 (25.40mm) | 2 (50.80mm) | 1/2 (12.70mm) | 3-5/8 | 2 | – | 45447 |
| 1 (25.40mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45448 |
| 1-1/8 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45449 |
| 2 (50.80mm) | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45480 |
| 2 (50.80mm) | 1-1/4 | 3/4 (19.05mm) | 2-7/8 | 2 | – | 45480-CNC |
| 1-1/4 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45450 |
| 1-3/4 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45453 |
| 1-1/2 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45452 |
| 1-1/2 | 1-1/4 | 1/2 (12.70mm) | 2-7/8 | 2 | – | 45452-CNC |
| – | – | – | – | —- | – | AMS-104 |
| Weight | 0.2 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
Need This Tool Customized?
Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.
We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.
Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
Common Tool Customization Options
Diameter and OD Modifications
We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.
Bore Modifications for Saw Blades
Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.
Length Adjustments
Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.
Shank Modifications
Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.
